HYM71V16635BT6 - PC133 SDRAM Unbuffered DIMM

Hynix Semiconductor

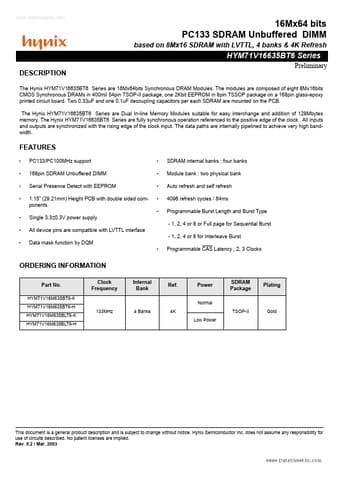

HYM71V16635BT6 Datasheet Preview — Preview of HYM71V16635BT6 PDF

Datasheet Details

Part number	HYM71V16635BT6
Manufacturer	Hynix Semiconductor
File Size	443.14 KB
Description	PC133 SDRAM Unbuffered DIMM
Datasheet	HYM71V16635BT6_HynixSemiconductor.pdf

HYM71V16635BT6 Product details

Description

Preliminary The Hynix HYM71V16635BT6 Series are 16Mx64bits Synchronous DRAM Modules.The modules are composed of eight 8Mx16bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 168pin glass-epoxy printed circuit board.Two 0.33uF and one 0.1uF decoupling capacitors per each SDRAM are mounted on the PCB.The Hynix HYM71V16635BT6 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 128Mbytes memory.The Hynix HYM7

Features

PC133/PC100MHz support 168pin SDRAM Unbuffered DIMM Serial Presence Detect with EEPROM 1.15” (29.21mm) Height PCB with double sided components Single 3.3±0.3V power supply - 1, 2, 4 or 8 or Full page for Sequential Burst.
All device pins are compatible with LVTTL interface - 1, 2, 4 or 8 for Interleave Burst Data mask function by DQM.
Programmable CAS Latency ; 2, 3 Clocks.
