HYM71V16635BLT6, HYM71V16635BT6 - PC133 SDRAM Unbuffered DIMM

Hynix Semiconductor

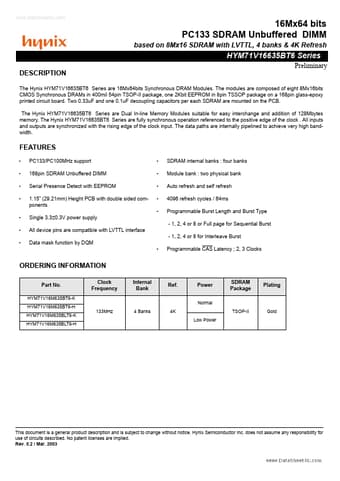

HYM71V16635BLT6 Datasheet Preview — This datasheet PDF includes multiple part numbers: HYM71V16635BLT6, HYM71V16635BT6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	HYM71V16635BLT6, HYM71V16635BT6
Manufacturer	Hynix Semiconductor
File Size	443.14 KB
Description	PC133 SDRAM Unbuffered DIMM
Datasheet	HYM71V16635BT6_HynixSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HYM71V16635BLT6, HYM71V16635BT6. Please refer to the document for exact specifications by model.

HYM71V16635BLT6 Product details

Description

Preliminary The Hynix HYM71V16635BT6 Series are 16Mx64bits Synchronous DRAM Modules.The modules are composed of eight 8Mx16bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 168pin glass-epoxy printed circuit board.Two 0.33uF and one 0.1uF decoupling capacitors per each SDRAM are mounted on the PCB.The Hynix HYM71V16635BT6 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 128Mbytes memory.The Hynix HYM7

Features

PC133/PC100MHz support 168pin SDRAM Unbuffered DIMM Serial Presence Detect with EEPROM 1.15” (29.21mm) Height PCB with double sided components Single 3.3±0.3V power supply - 1, 2, 4 or 8 or Full page for Sequential Burst.
All device pins are compatible with LVTTL interface - 1, 2, 4 or 8 for Interleave Burst Data mask function by DQM.
Programmable CAS Latency ; 2, 3 Clocks.
