GM72V66841Exx - 2M x 8-Bit x 4 Bank SDRAM

Hynix Semiconductor

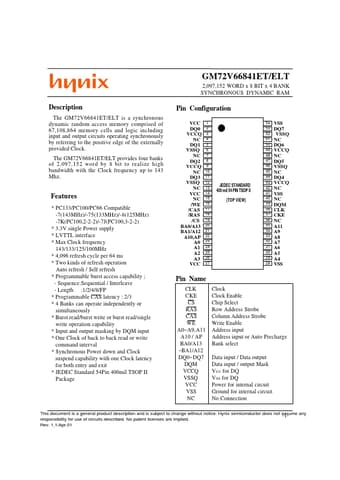

GM72V66841Exx Datasheet Preview — Preview of GM72V66841Exx PDF

Datasheet Details

Part number	GM72V66841Exx
Manufacturer	Hynix Semiconductor
File Size	86.71 KB
Description	2M x 8-Bit x 4 Bank SDRAM
Datasheet	GM72V66841Exx_HynixSemiconductor.pdf

GM72V66841Exx Product details

Description

The GM72V66841ET/ELT is a synchronous dynamic random access memory comprised of 67,108,864 memory cells and logic including input and output circuits operating synchronously by referring to the positive edge of the externally provided Clock.

Features

PC133/PC100/PC66 Compatible -7(143MHz)/-75(133MHz)/-8(125MHz) -7K(PC100,2-2-2)/-7J(PC100,3-2-2).
3.3V single Power supply.
LVTTL interface.
Max Clock frequency 143/133/125/100MHz.
4,096 refresh cycle per 64 ms.
Two kinds of refresh operation Auto refresh / Self refresh.
Programmable burst access capability ; - Sequence:Sequential / Interleave - Length :1/2/4/8/FP.
Programmable CAS latency : 2/3.
4 Banks can operate independently or simultaneously.
