GM72V66841CT, GM72V66841CLT - 2M x 8-Bit x 4 Bank SDRAM

LG Semicon

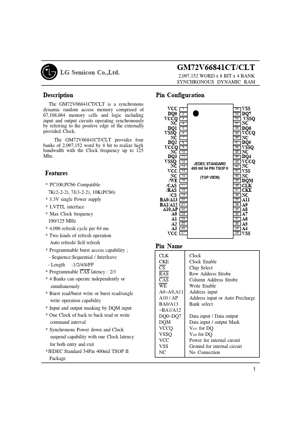

GM72V66841CT Datasheet Preview — This datasheet PDF includes multiple part numbers: GM72V66841CT, GM72V66841CLT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	GM72V66841CT, GM72V66841CLT
Manufacturer	LG Semicon
File Size	565.43 KB
Description	2M x 8-Bit x 4 Bank SDRAM
Datasheet	GM72V66841CLT-LGSemicon.pdf
Note	This datasheet PDF includes multiple part numbers: GM72V66841CT, GM72V66841CLT. Please refer to the document for exact specifications by model.

GM72V66841CT Product details

Description

The GM72V66841CT/CLT is a synchronous dynamic random access memory comprised of 67,108,864 memory cells and logic including input and output circuits operating synchronously by referring to the positive edge of the externally provided Clock.

Features

PC100,PC66 Compatible 7K(2-2-2), 7J(3-2-2), 10K(PC66).
3.3V single Power supply.
LVTTL interface.
Max Clock frequency 100/125 MHz.
4,096 refresh cycle per 64 ms.
Two kinds of refresh operation Auto refresh/ Self refresh.
Programmable burst access capability ; - Sequence:Sequential / Interleave - Length :1/2/4/8/FP.
Programmable CAS latency : 2/3.
4 Banks can operate independently or simultaneously.
Burst read/burst write or burst read/single wri.
