CS20N50A8H - Silicon N-Channel Power MOSFET

Huajing Microelectronics

📥 Download Datasheet

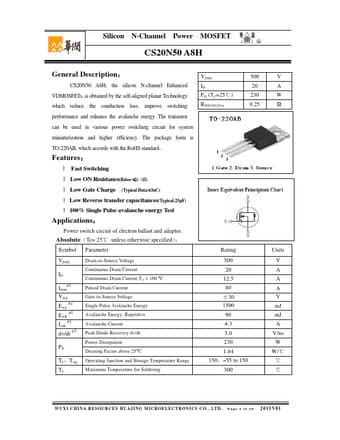

CS20N50A8H Datasheet Preview — Preview of CS20N50A8H PDF

Datasheet Details

Part number	CS20N50A8H
Manufacturer	Huajing Microelectronics
File Size	352.23 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS20N50A8H-HuajingMicroelectronics.pdf

CS20N50A8H Product details

Description

CS20N50 A8H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching VDSS ID PD (TC=25℃) RDS(ON)Typ 500 20 230 0.25 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220AB, which accords with the RoHS standard..

Features

l Fast Switching l Low ON Resistance(Rdson≤0.3Ω) l Low Gate Charge (Typical Data:63nC) l Low Reverse transfer capacitances(Typical:25pF) l 100% Single Pulse avalanche energy Test.
