HT2014M, HT201xx Datasheet - Holtek Semiconductor

HT2014M (HT201xx) One Lamp/LED Flash Driver

The HT201XX series is a low cost, low power CMOS LSI chip designed for lamp and LED flash drivers. It can be operated without any external components, thus suitable for applications on flashing badges, gift cards, flashing earrings, and other products that require flashing lights. Selection Table P.

HT2014M Features

* CMOS Metal-Gate Process Technology Operating voltage: 1.2V~4.5V Low standby current: 1µA Typ. at 3V Built-in oscillator (FOSC: 32KHz) ON/OFF control function for the HT2013H, HT2013M, HT2013L 1/8 duty cycle ou

HT201xx_HoltekSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HT2014M, HT201xx. Please refer to the document for exact specifications by model.

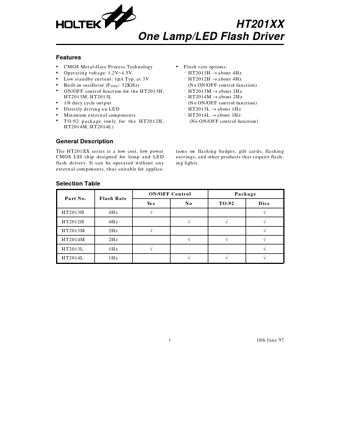

HT2014M Datasheet Preview Page 2 HT2014M Datasheet Preview Page 3

Datasheet Details

Part number:

HT2014M, HT201xx

Manufacturer:

Holtek Semiconductor

File Size:

95.67 KB

Description:

(ht201xx) one lamp/led flash driver.

Note:

This datasheet PDF includes multiple part numbers: HT2014M, HT201xx.
Please refer to the document for exact specifications by model.
