HT2012H, HT201xx (HT201xx) One Lamp/LED Flash Driver

HT2012H Description

www.DataSheet4U.com HT201XX One Lamp/LED Flash Driver .
The HT201XX series is a low cost, low power CMOS LSI chip designed for lamp and LED flash drivers.

HT2012H Features

* CMOS Metal-Gate Process Technology Operating voltage: 1.2V~4.5V Low standby current: 1µA Typ. at 3V Built-in oscillator (FOSC: 32KHz) ON/OFF control function for the HT2013H, HT2013M, HT2013L 1/8 duty cycle ou

HT2012H Applications

* on flashing badges, gift cards, flashing earrings, and other products that require flashing lights. Selection Table Part No. HT2013H HT2012H HT2013M HT2014M HT2013L HT2014L Flash Rate 4Hz 4Hz 2Hz 2Hz 1Hz 1Hz ON/OFF Control Yes √ √ √ √ √ √ √ √ √ Package TO-92 Dice √ √ √ √ √ √ No 1 10th June ’9

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT2012H, HT201xx. Please refer to the document for exact specifications by model.

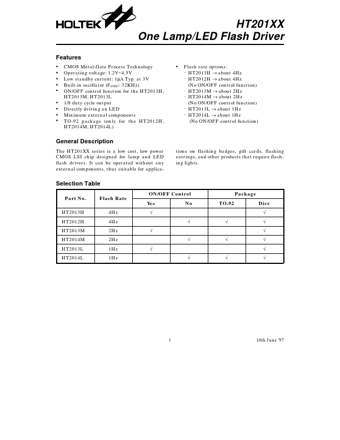

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT2012H, HT201xx
Manufacturer
Holtek Semiconductor
File Size
95.67 KB
Datasheet
HT201xx_HoltekSemiconductor.pdf
Description
(HT201xx) One Lamp/LED Flash Driver
Note
This datasheet PDF includes multiple part numbers: HT2012H, HT201xx.
Please refer to the document for exact specifications by model.
