HT20072A, HT20071A Datasheet - HTCSEMI

HT20072A Operational Amplifier

HT20071A / HT20072A / HT20074A Operational Amplifier, Rail-to-Rail Output, 3 MHz BW The HT2007x series operational amplifiers provide rail to rail output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations. Rail to rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth. The HT2007x can operate on supply voltages as low as 2.7 V over the temperature range .

HT20072A Features

* Rail

* To

* Rail Output

* Wide Supply Range: 2.7 V to 36 V

* Wide Bandwidth: 3 MHz typical at VS = 2.7 V

* High Slew Rate: 2.8 V/ms typical at VS = 2.7 V

* Low Supply Current: 405 mA per channel at VS = 2.7 V

* Low Input Bias Current: 5 p

HT20071A-HTCSEMI.pdf

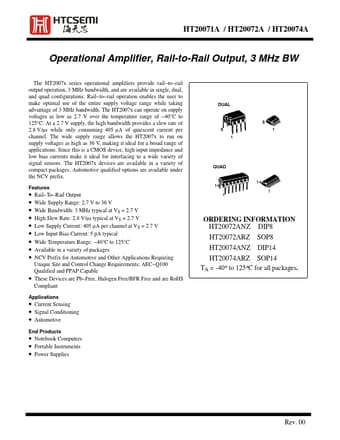

HT20072A Datasheet Preview — This datasheet PDF includes multiple part numbers: HT20072A, HT20071A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT20072A, HT20071A

Manufacturer:

HTCSEMI

File Size:

4.64 MB

Description:

Operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: HT20072A, HT20071A.
Please refer to the document for exact specifications by model.
