HIRF840, HIRF840_Hi N-Channel Power MOSFET

HIRF840 Description

HI-SINCERITY MICROELECTRONICS CORP.Spec.No.: MOS200505 Issued Date : 2005.06.01 Revised Date : 2005.06.08 Page No.: 1/4 HIRF840 / HIRF840F N-CHA.
This N - Channel MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low onresistance and cost-effecti.

HIRF840 Features

* Dynamic dv/dt Rating
* Repetitive Avalanche Rated
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements Thermal Characteristics Symbol Parameter RθJC Thermal Resistance Junction to Case Max. RθJA Thermal Resistance Junction to Ambient Max

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HIRF840, HIRF840_Hi. Please refer to the document for exact specifications by model.

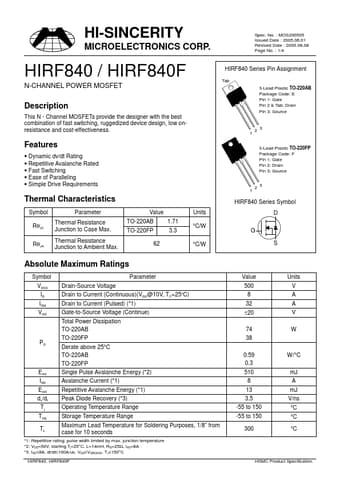

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIRF840, HIRF840_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
47.13 KB
Datasheet
HIRF840_Hi-SincerityMocroelectronics.pdf
Description
N-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: HIRF840, HIRF840_Hi.
Please refer to the document for exact specifications by model.
