HEDL-5540, HEDL-550x_Hewlett Encoder Line Drivers

HEDL-5540 Description

www.DataSheet4U.com Encoder Line Drivers Technical Data HEDL-550x/554x HEDL-560x/564x HEDL-9000/9100 HEDL-9040/9140 .
Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders.

HEDL-5540 Features

* Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series)
* Complementary Outputs
* Industry Standard Line Driver IC
* Single 5 V Supply
* Onboard Bypass Capacitor
* 70°C and 100°C Versions Available The 70°C ve

HEDL-5540 Applications

* Eg. ABS braking systems, power steering, life support systems and critical care medical equipment. Please contact sales representative if more clarification is needed. Device Characteristics Parameter Termination Electrical Outputs Line Driver Components Operating Temperature Range Storage Tempera

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HEDL-5540, HEDL-550x_Hewlett. Please refer to the document for exact specifications by model.

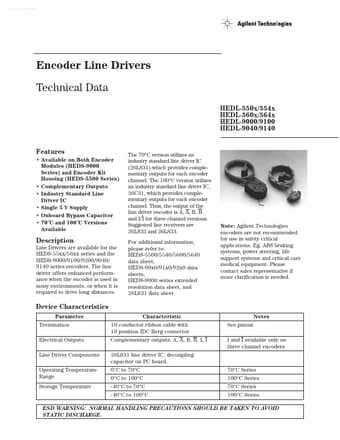

datasheet Preview Page 2 datasheet Preview Page 3
