HEDL-554x - (HEDL-5xxx / HEDL-9xxx) Encoder Line Drivers

This page provides the datasheet information for the HEDL-554x, a member of the HEDL-550x_Hewlett (HEDL-5xxx / HEDL-9xxx) Encoder Line Drivers family.

Description

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders.

The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances.

Features

  • Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series).
  • Complementary Outputs.
  • Industry Standard Line Driver IC.
  • Single 5 V Supply.
  • Onboard Bypass Capacitor.
  • 70°C and 100°C Versions Available The 70°C version utilizes an industry standard line driver IC (26LS31) which provides complementary outputs for each encoder channel. The 100°C version utilizes an industry standard line driver IC, 26C31, which.

📥 Download Datasheet

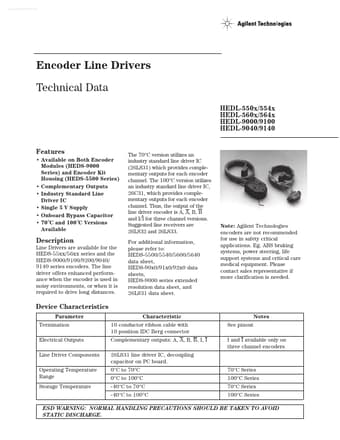

Datasheet preview – HEDL-554x

Datasheet Details

Part number HEDL-554x
Manufacturer Hewlett-Packard
File Size 106.67 KB
Description (HEDL-5xxx / HEDL-9xxx) Encoder Line Drivers
Datasheet download datasheet HEDL-554x Datasheet
Additional preview pages of the HEDL-554x datasheet.

📁 Similar Datasheet

Other Datasheets by Hewlett-Packard

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Encoder Line Drivers Technical Data HEDL-550x/554x HEDL-560x/564x HEDL-9000/9100 HEDL-9040/9140 Features • Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series) • Complementary Outputs • Industry Standard Line Driver IC • Single 5 V Supply • Onboard Bypass Capacitor • 70°C and 100°C Versions Available The 70°C version utilizes an industry standard line driver IC (26LS31) which provides complementary outputs for each encoder channel. The 100°C version utilizes an industry standard line driver IC, 26C31, which provides complementary outputs for each encoder channel. Thus, the output of the line driver encoder is A, A, B, B and I/I for three channel versions. Suggested line receivers are 26LS32 and 26LS33.
