HCPL-M454, HCPL-M454_Hewlett Ultra High CMR / Small Outline / 5 Lead / High Speed Optocoupler

HCPL-M454 Description

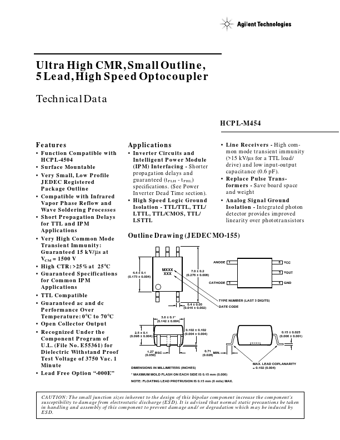

Ultra High CMR, Small Outline, 5 Lead, High Speed Optocoupler Technical Data HCPL-M454 .
The HCPL-M454 is similar to Agilent’s other high speed transistor output optocouplers, but with shorter propagation delays and higher CTR.

HCPL-M454 Features

* Function Compatible with HCPL-4504
* Surface Mountable
* Very Small, Low Profile JEDEC Registered Package Outline
* Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes

HCPL-M454 Applications

* Very High Common Mode Transient Immunity: Guaranteed 15 kV/ µ s at VCM = 1500 V
* High CTR: >25% at 25°C
* Guaranteed Specifications for Common IPM Applications
* TTL Compatible
* Guaranteed ac and dc Performance Over Temperature: 0°C to 70°C
* Open

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HCPL-M454, HCPL-M454_Hewlett. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL-M454, HCPL-M454_Hewlett
Manufacturer
Hewlett-Packard
File Size
82.70 KB
Datasheet
HCPL-M454_Hewlett-Packard.pdf
Description
Ultra High CMR / Small Outline / 5 Lead / High Speed Optocoupler
Note
This datasheet PDF includes multiple part numbers: HCPL-M454, HCPL-M454_Hewlett.
Please refer to the document for exact specifications by model.
