HCPL-M600 Logic Gate Optocouplers

HCPL-M600 Description

HCPL-M600, HCPL-M601, HCPL-M611 Small Outline, 5 Lead, High CMR, High Speed, Logic Gate Optocouplers Data Sheet .
These small outline high CMR, high speed, logic gate opto­coup­lers are single channel devices in a five lead miniature foot­print.

HCPL-M600 Features

* Surface Mountable
* Very Small, Low Profile JEDEC Registered Package Outline
* Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes
* Internal Shield for H

📥 Download Datasheet

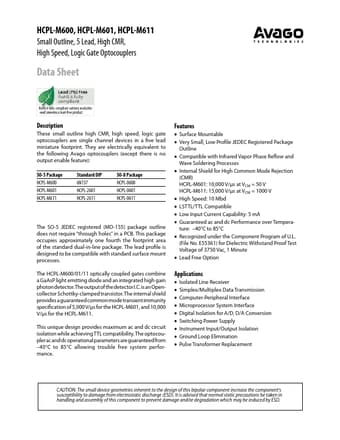

Preview of HCPL-M600 PDF
