HCPL-M452 High Speed Optocouplers

HCPL-M452 Description

Small Outline, 5 Lead, High Speed Optocouplers Technical Data www.DataSheet4U.com HCPL-M452 HCPL-M453 .
These small outline high CMR, high speed, diode-transistor optocouplers are single channel devices in a five lead miniature footprint.

HCPL-M452 Features

* Surface Mountable
* Very Small, Low Profile JEDEC Registered Package Outline
* Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes
* Very High Common Mode Transient Immunity: 15000 V/µ s at VCM = 1500 V Guaranteed (HCPL-M453)
* High Spee

HCPL-M452 Applications

* Line Receivers High common mode transient immunity (>1000 V/µs) and low input-output capacitance (0.6 pF).
* High Speed Logic Ground Isolation - TTL/TTL, TTL/ LTTL, TTL/CMOS, TTL/ LSTTL.
* Replace Slow Phototransistor Optocouplers
* Replace Pulse Transformers - Save

📥 Download Datasheet

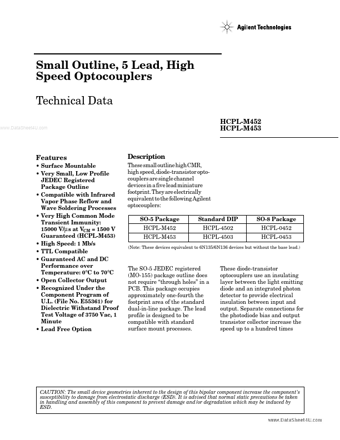

Preview of HCPL-M452 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL-M452
Manufacturer
Agilent
File Size
125.23 KB
Datasheet
HCPL-M452_Agilent.pdf
Description
High Speed Optocouplers
