RFP70N03 N-Channel MOSFET

RFP70N03 Description

SEMICONDUCTOR RFP70N03, RF1S70N03, RF1S70N03SM December 1995 70A, 30V, Avalanche Rated N-Channel Enhancement-Mode Power MOSFETs .
The RFP70N03, RF1S70N03, and RF1S70N03SM N-Channel power MOSFETs are manufactured using the MegaFET process.

RFP70N03 Features

* 70A, 30V
* rDS(ON) = 0.010Ω
* Temperature Compensating PSPICE Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve (Single Pulse)

RFP70N03 Applications

* such as switching regulators, switching converters, motor drivers, relay drivers and emitter switches for bipolar transistors. These transistors can be operated directly from integrated circuits. PACKAGE AVAILABILITY PART NUMBER PACKAGE BRAND RFP70N03 TO-220AB RFP70N03 RF1S70N03 TO-262AA F

📥 Download Datasheet

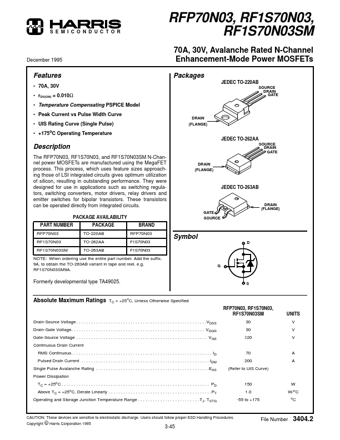

Preview of RFP70N03 PDF
