HA-5112, HA-5102 Low Noise Operational Amplifiers

HA-5112 Description

SEMICONDUCTOR November 1996 HA-5102, HA-5104, HA-5112, HA-5114 Dual and Quad, 8MHz and 60MHz, Low Noise Operational Amplifiers .
Low noise and high performance are key words describing HA-5102 and HA-5104, HA-5112, HA-5114.

HA-5112 Features

* Low Noise
* . . . 4.3nV/√Hz
* Bandwidth
* . . . 8MHz (Compensated) 60MHz (Uncompensated)
* Slew Rate
* . . . 3V/µs (Compensated) 20V/µs (Uncompensated)
* Low Offset Voltage

HA-5112 Applications

* Applications
* High Q, Active Filters
* Audio Amplifiers
* Instrumentation Amplifiers
* Integrators
* Signal Generators

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HA-5112, HA-5102. Please refer to the document for exact specifications by model.

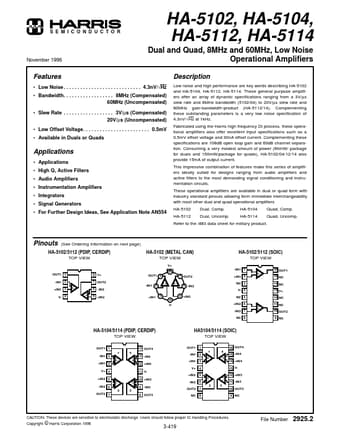

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA-5112, HA-5102
Manufacturer
Harris
File Size
377.29 KB
Datasheet
HA-5102-Harris.pdf
Description
Low Noise Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: HA-5112, HA-5102.
Please refer to the document for exact specifications by model.
