HA-5104, HA-5102 Low Noise Operational Amplifiers

Harris

Description

SEMICONDUCTOR November 1996 HA-5102, HA-5104, HA-5112, HA-5114 Dual and Quad, 8MHz and 60MHz, Low Noise Operational Ampliﬁers .
Low noise and high performance are key words describing HA-5102 and HA-5104, HA-5112, HA-5114.

📥 Download Datasheet

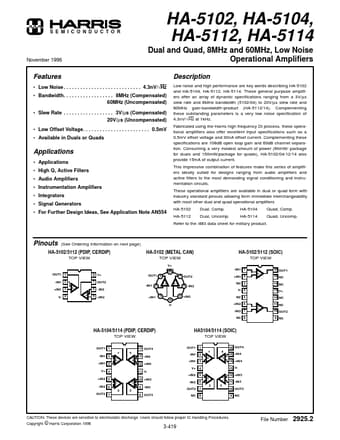

HA-5104 Datasheet Preview — This datasheet PDF includes multiple part numbers: HA-5104, HA-5102. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HA-5104, HA-5102
Manufacturer: Harris
File Size: 377.29 KB
Datasheet: HA-5102-Harris.pdf
Description: Low Noise Operational Amplifiers
Note: This datasheet PDF includes multiple part numbers: HA-5104, HA-5102.
Please refer to the document for exact specifications by model.

Features

* Low Noise
* . . . 4.3nV/√Hz
* Bandwidth
* . . . 8MHz (Compensated) 60MHz (Uncompensated)
* Slew Rate
* . . . 3V/µs (Compensated) 20V/µs (Uncompensated)
* Low Offset Voltage

Applications

* Applications
* High Q, Active Filters
* Audio Ampliﬁers
* Instrumentation Ampliﬁers
* Integrators
* Signal Generators
