HYG080N10LS1C2 Single N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG080N10LS1C2 Single N-Channel Enhancement Mode MOSFET .
DDDD DDDD SSSG GSSS Pin1 PDFN5. 6-8L Applications. High Frequency Point-of-Load Synchronous Buck Converter. Power Tool Application.

📥 Download Datasheet

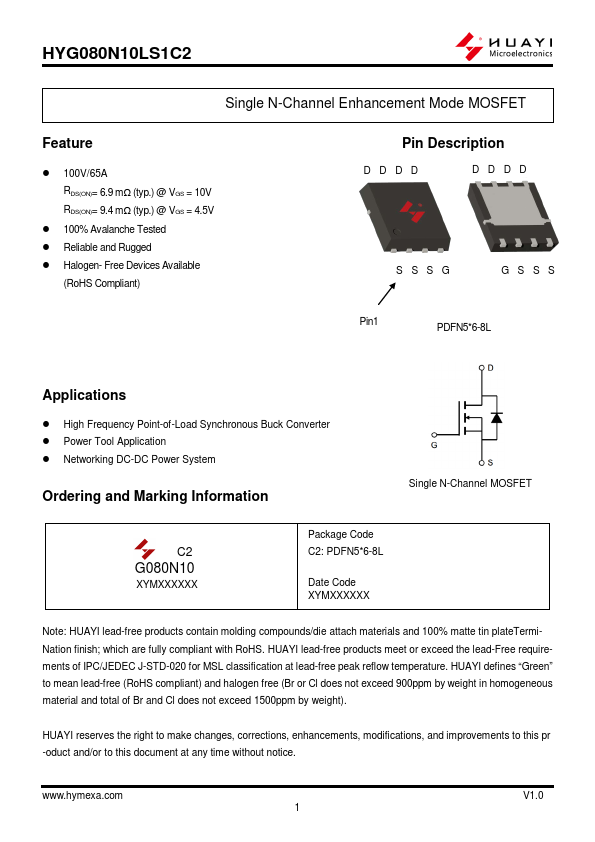

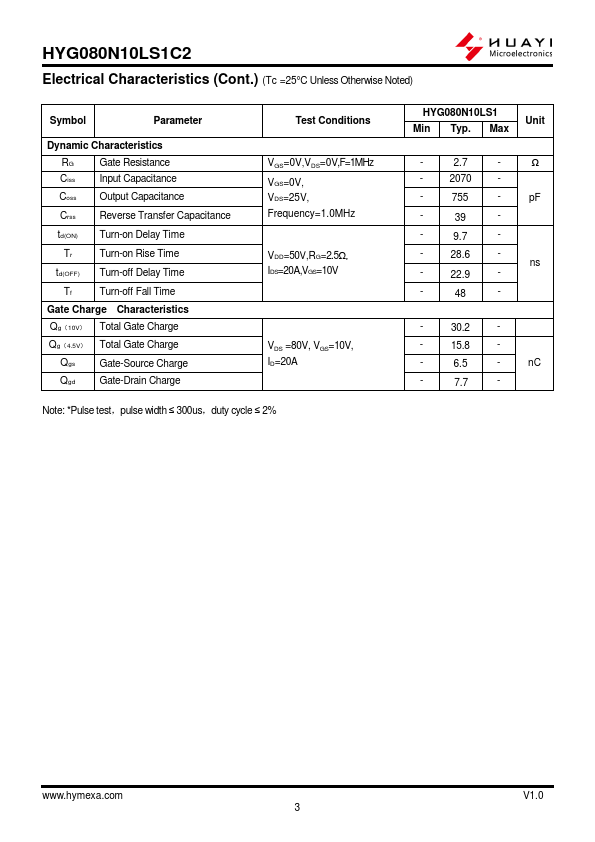

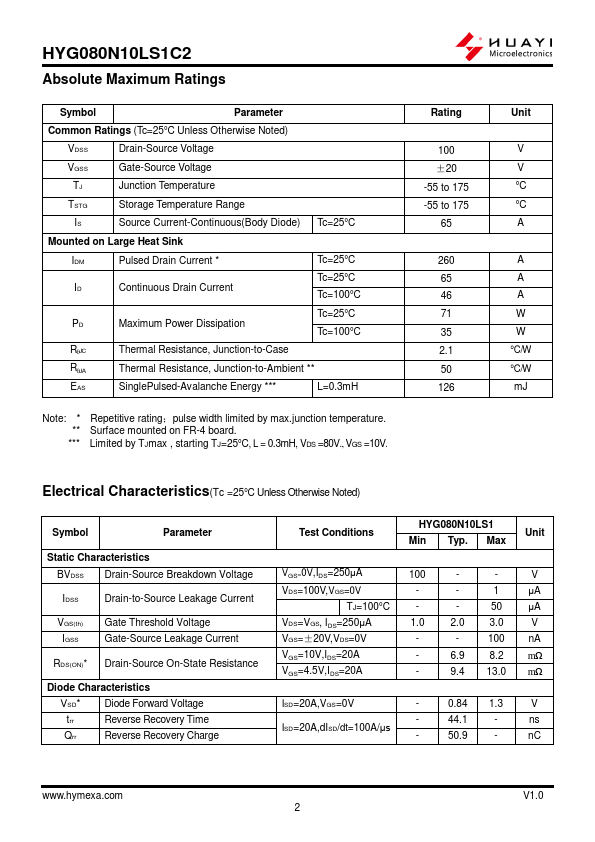

HYG080N10LS1C2 Datasheet Preview — Preview of HYG080N10LS1C2 PDF

Datasheet Specifications

Part number: HYG080N10LS1C2
Manufacturer: HUAYI
File Size: 887.20 KB
Datasheet: HYG080N10LS1C2-HUAYI.pdf
Description: Single N-Channel Enhancement Mode MOSFET

Applications

* High Frequency Point-of-Load Synchronous Buck Converter
* Power Tool Application
* Networking DC-DC Power System Ordering and Marking Information Single N-Channel MOSFET C2 G080N10 XYMXXXXXX Package Code C2: PDFN5
* 6-8L Date Code XYMXXXXXX Note: HUAYI lead-free products contain

HYG080N10LS1C2 Distributors
