HY4504A, HY4504W N-Channel Enhancement Mode MOSFET

HUAYI

Description

HY4504W/A N-Channel Enhancement Mode MOSFET .
S D G 72$/ S D G 723/ Applications. Power Management for Inverter Systems.

📥 Download Datasheet

HY4504A Datasheet Preview — This datasheet PDF includes multiple part numbers: HY4504A, HY4504W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HY4504A, HY4504W
Manufacturer: HUAYI
File Size: 509.22 KB
Datasheet: HY4504W-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET
Note: This datasheet PDF includes multiple part numbers: HY4504A, HY4504W.
Please refer to the document for exact specifications by model.

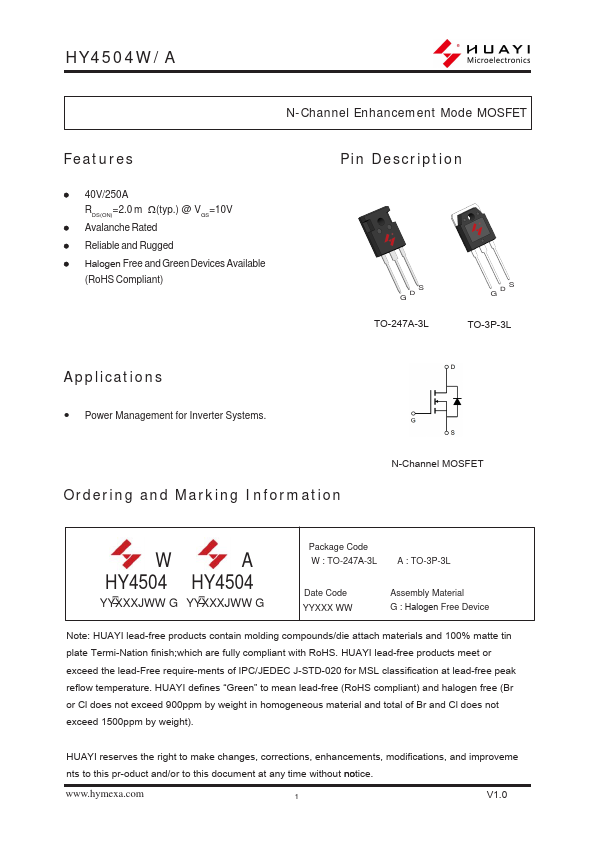

Features

* 40V/250A R =2.0 m DS(ON) Ω(typ. ) @ V =10V GS
* Avalanche Rated
* Reliable and Rugged

Applications

* Power Management for Inverter Systems. Ordering and Marking Information 1&KDQQHO026)(7 W A HY4504 HY4504 YYXXXJWW G YYXXXJWW G Package Code W : TO-247A-3L A : TO-3P-3L Date Code YYXXX WW Assembly Material G : Halogen Free Device 1RWH+8$
