HY4306B6 - N-Channel Enhancement Mode MOSFET

HY4306B6 Description

HY4306B6 .
z 60V/290A RDS(ON)= 1.

HY4306B6 Applications

* z Switch application z Brushless Motor Drive Ordering and Marking Information B6 HY4306 YYXXXJWW G Pin1 Pin2,3,5,6,7 N-Channel MOSFET Package Code B6:TO-263-6L Date Code YYXXX WW Assembly Material G:Lead Free Note: HUAYI lead -free products contain molding compounds/die attach materials and 100

📥 Download Datasheet

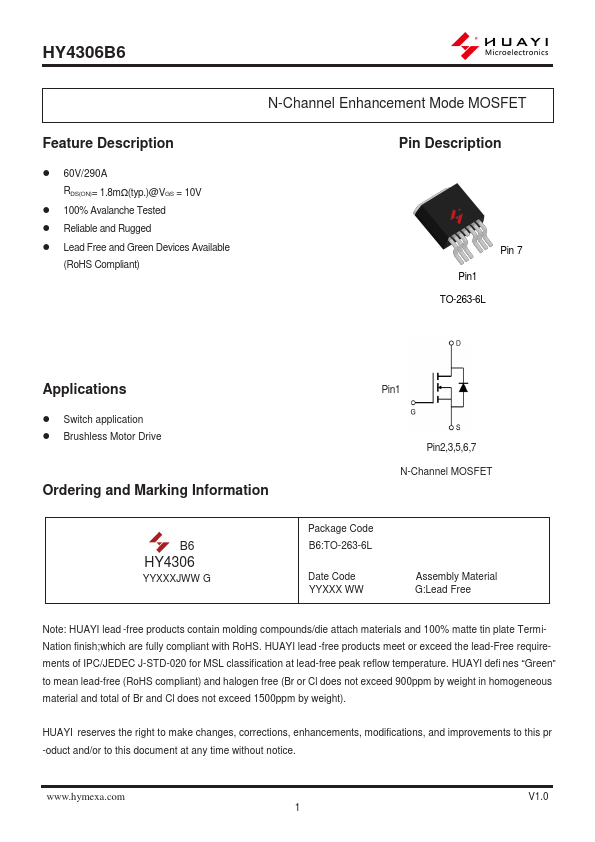

Preview of HY4306B6 PDF

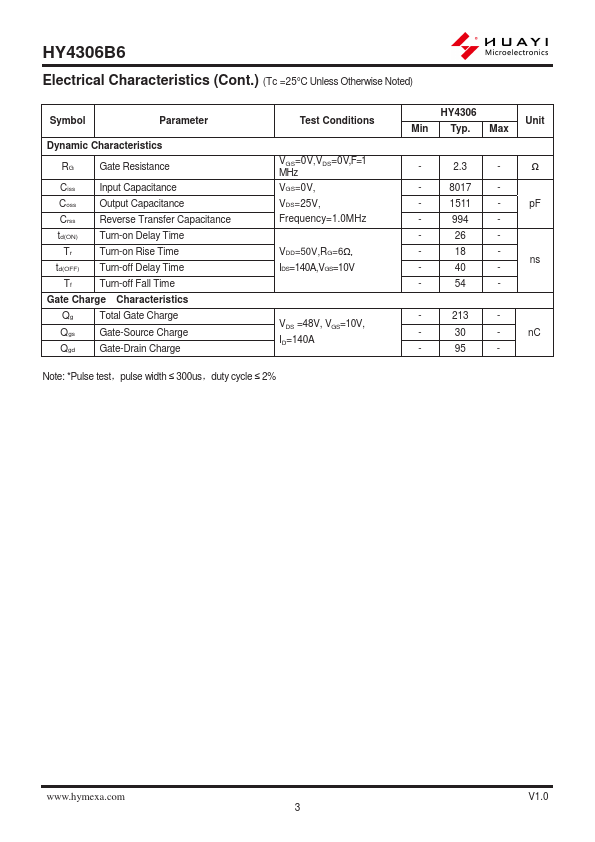

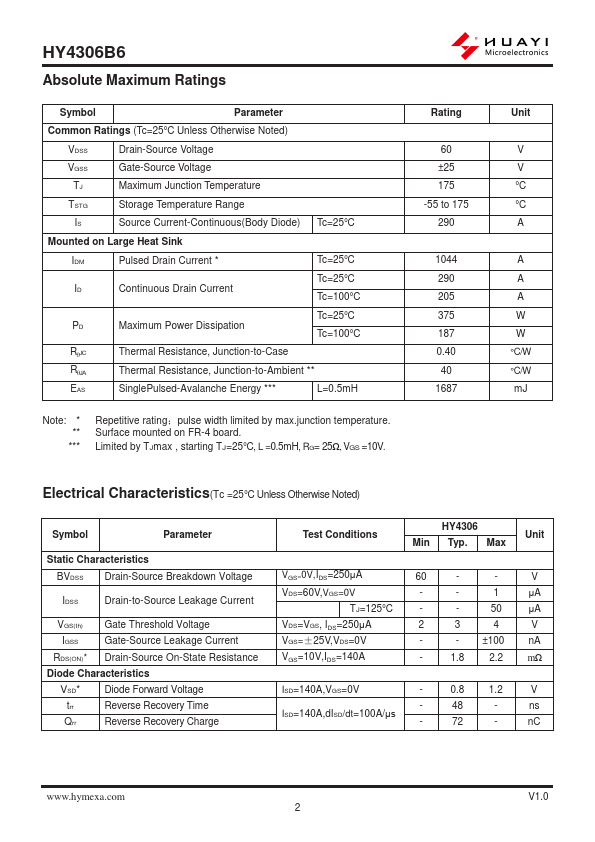

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY4306B6
Manufacturer
HUAYI
File Size
624.15 KB
Datasheet
HY4306B6-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
