HY4004P - N-Channel Enhancement Mode MOSFET

HY4004P Description

HY4004P/B N-Channel Enhancement Mode MOSFET .
GDS GDS TO-220FB-3L TO-263-2L Applications. Switching application. Power Management for DC/DC Ordering and Marking Information.

HY4004P Features

* 40V/208A RDS(ON) = 2.5 m(typ. ) @ VGS=10V
* 100% avalanche tested
* Reliable and Rugged

HY4004P Applications

* Switching application
* Power Management for DC/DC Ordering and Marking Information N-Channel MOSFET P B HY4004 HY4004 YYXXXJWW G YYXXXJWW G Package Code P : TO-220FB-3L Date Code YYXXX WW B: TO-263-2L Assembly Material G : Lead Free Device Note: HUAYI lead-free products co

📥 Download Datasheet

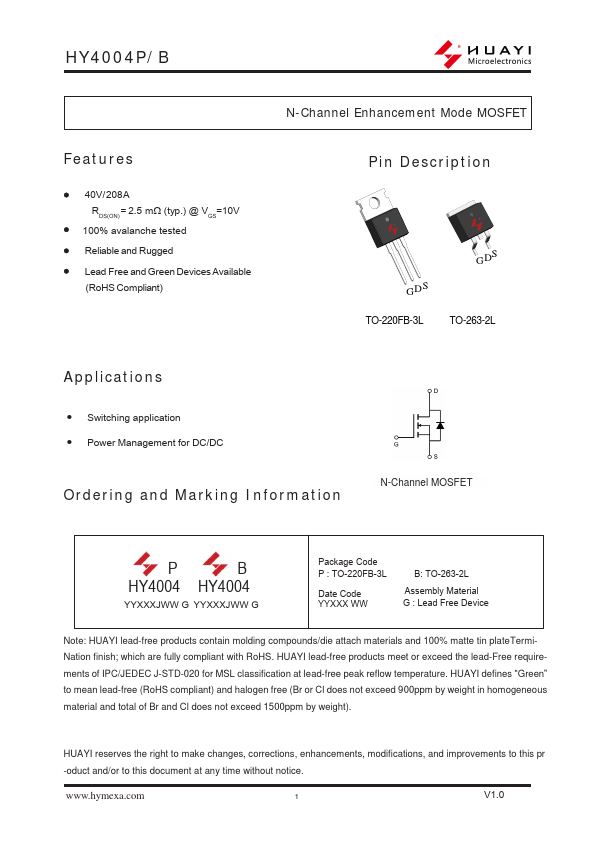

Preview of HY4004P PDF

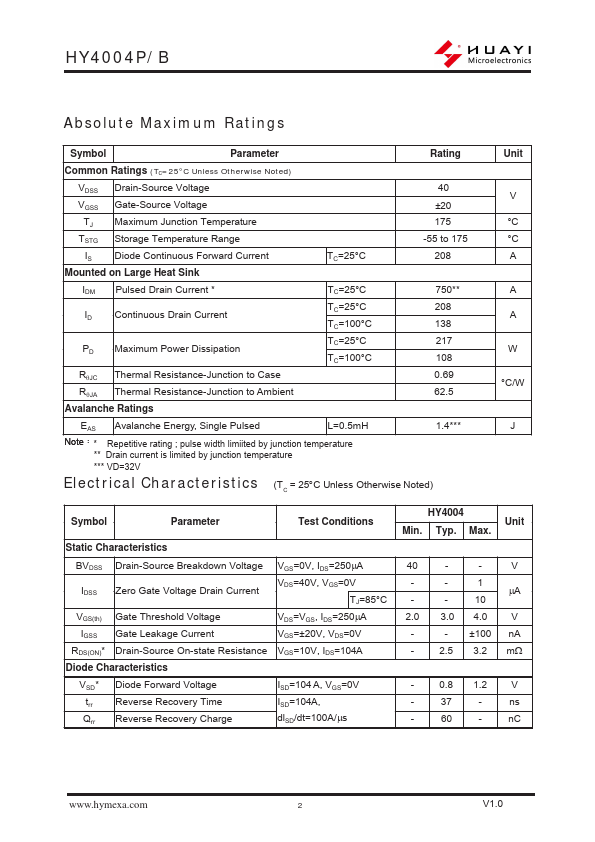

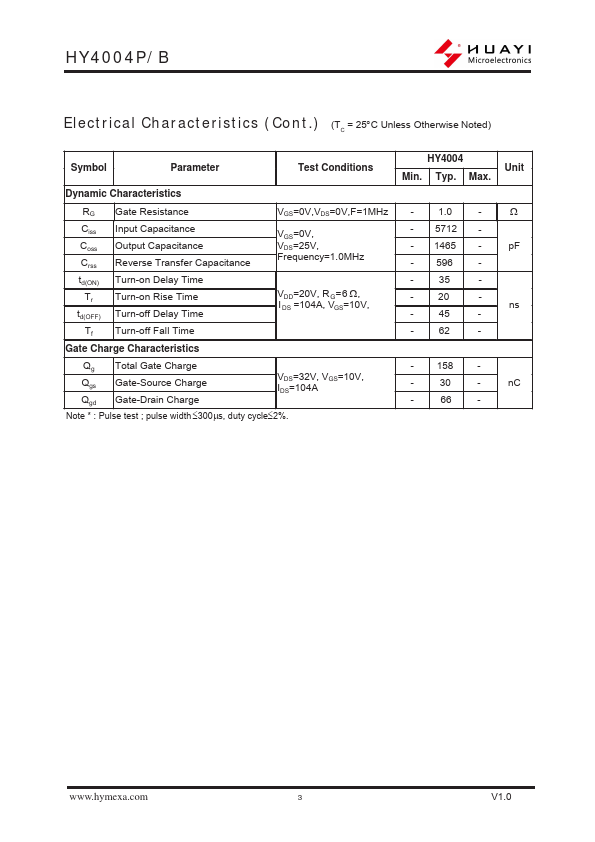

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY4004P
Manufacturer
HUAYI
File Size
515.10 KB
Datasheet
HY4004P-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
