HCNW139 High Gain Optocouplers

HCNW139 Description

Low Input Current, High Gain Optocouplers Technical Data 6N139 6N138 HCPL-0701 HCPL-0700 HCNW139 HCNW138 .

HCNW139 Features

* High Current Transfer Ratio
* 2000% Typical (4500% Typical for HCNW139/138)
* Low Input Current Requirements
* 0.5 mA
* TTL Compatible Output
* 0.1 V VOL Typical
* Performance Guaranteed over Temperature 0°C to 70°C
* Base Access Allo

HCNW139 Applications

* Ground Isolate Most Logic Families
* TTL/TTL, CMOS/ TTL, CMOS/CMOS, LSTTL/ TTL, CMOS/LSTTL
* Low Input Current Line Receiver
* High Voltage Insulation (HCNW139/138)
* EIA RS-232C Line Receiver
* Telepho

📥 Download Datasheet

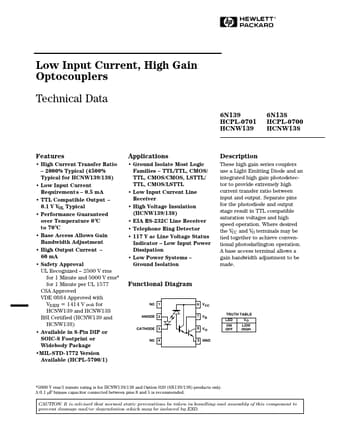

Preview of HCNW139 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCNW139
Manufacturer
HP
File Size
255.13 KB
Datasheet
HCNW139-HP.pdf
Description
High Gain Optocouplers
