HCNW4502 - High Speed Optocouplers

Download the HCNW4502 datasheet PDF. This datasheet also covers the HCNW135 variant, as both devices belong to the same high speed optocouplers family and are provided as variant models within a single manufacturer datasheet.

Features

  • 15 kV/µs Minimum Common Mode Transient Immunity at VCM = 1500 V (4503/0453).
  • High Speed: 1 Mb/s.
  • TTL Compatible.
  • Available in 8-Pin DIP, SO-8, Widebody Packages.
  • Open Collector Output.
  • Guaranteed Performance from Temperature: 0°C to 70°C.
  • Safety Approval UL Recognized.
  • 2500 V rms for 1 minute (5000 V rms for 1 minute for HCNW and Option 020 devices) per UL1577 CSA Approved VDE 0884 Approved.
  • VIORM = 630 V peak for H.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HCNW135-HP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HCNW4502
Manufacturer HP
File Size 236.59 KB
Description High Speed Optocouplers
Datasheet download datasheet HCNW4502 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCNW4502 High Speed Optocouplers Avago
HCNW4503 High Speed Optocouplers Avago
HCNW4504 High Speed Optocouplers AVAGO
HCNW4506 Intelligent Power Module and Gate Drive Interface Optocouplers Avago
HCNW4562 Analog/Video Optocouplers Broadcom

Other Datasheets by HP

Part Number Description
HCNW4503 High Speed Optocouplers
HCNW4504 High Speed Optocouplers
HCNW4506 Intelligent Power Module and Gate Drive Interface Optocouplers
HCNW135 High Speed Optocouplers
HCNW136 High Speed Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

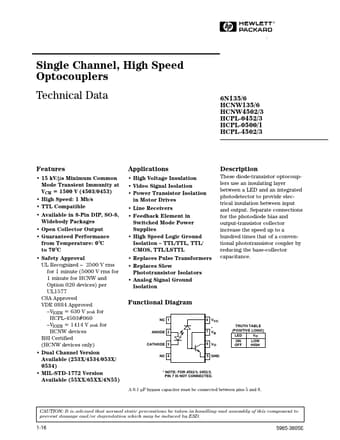

Single Channel, High Speed Optocouplers Technical Data H 6N135/6 HCNW135/6 HCNW4502/3 HCPL-0452/3 HCPL-0500/1 HCPL-4502/3 Features • 15 kV/µs Minimum Common Mode Transient Immunity at VCM = 1500 V (4503/0453) • High Speed: 1 Mb/s • TTL Compatible • Available in 8-Pin DIP, SO-8, Widebody Packages • Open Collector Output • Guaranteed Performance from Temperature: 0°C to 70°C • Safety Approval UL Recognized – 2500 V rms for 1 minute (5000 V rms for 1 minute for HCNW and Option 020 devices) per UL1577 CSA Approved VDE 0884 Approved –VIORM = 630 V peak for HCPL-4503#060 –VIORM = 1414 V peak for HCNW devices BSI Certified (HCNW devices only) • Dual Channel Version Available (253X/4534/053X/ 0534) • MIL-STD-1772 Version Available (55XX/65XX/4N55) Applications • High Voltage Insulation • Video
