HCNW137 High Speed TTL Compatible Optocouplers

HCNW137 Description

H High CMR, High Speed TTL Compatible Optocouplers Technical Data 6N137 HCNW137 HCNW2601 HCNW2611 HCPL-0600 HCPL-0601 HCPL-0611 HCPL-0630 HCPL-0631.

HCNW137 Features

* 5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and 10 kV/µs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611
* High Speed: 10 MBd Typical
* LSTTL/TTL Compatible
* Low Input Current Capability: 5 mA
* Guaranteed

HCNW137 Applications

* Isolated Line Rec

📥 Download Datasheet

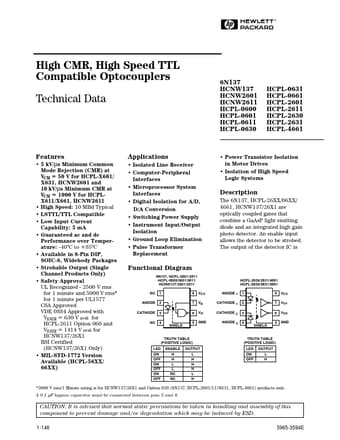

Preview of HCNW137 PDF
