ATF-13786 Surface Mount Gallium Arsenide FET

ATF-13786 Description

Surface Mount Gallium Arsenide FET for Oscillators Technical Data ATF-13786 GAIN (dB) 137 .
Hewlett-Packard’s ATF-13786 is a low cost Gallium Arsenide Schottky barrier-gate field effect transistor housed in a surface mount plastic package.

ATF-13786 Features

* Low Cost Surface Mount Plastic Package
* High fMAX: 60 GHz Typical
* Low Phase Noise at 10 GHz: -110 dBc/Hz @ 100 kHz Typical
* Output Power at 10 GHz: up to 10 dBm
* Tape-and-Reel Packaging Option Available 25 20 MSG 15 S 21 10 5 MAG MSG 0 1 5 10 20 FR

📥 Download Datasheet

Preview of ATF-13786 PDF

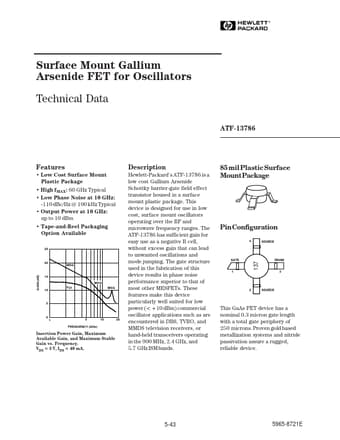

datasheet Preview Page 2 datasheet Preview Page 3
