AT-41485 - Up to 6 GHz Low Noise Silicon Bipolar Transistor

AT-41485 Description

Up to 6 GHz Low Noise Silicon Bipolar Transistor Technical Data AT-41485 .
Agilent’s AT-41485 is a general purpose NPN bipolar transistor that offers excellent high frequency performance.

AT-41485 Features

* Low Noise Figure: 1.4 dB Typical at 1.0 GHz 1.7 dB Typical at 2.0 GHz
* High Associated Gain: 18.5 dB Typical at 1.0 GHz 13.5 dB Typical at 2.0 GHz

AT-41485 Applications

* Applications include use in wireless systems as an LNA, gain stage, buffer, oscillator, and mixer. An optimum noise match near 50 Ω at 900 MHz, makes this device easy to use as a low noise amplifier. 85 Plastic Package The AT-41485 bi

📥 Download Datasheet

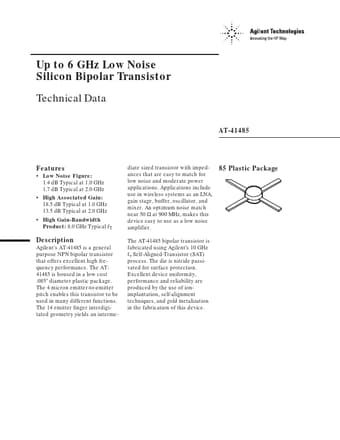

AT-41485 Datasheet Preview — Preview of AT-41485 PDF

Datasheet Details

Part number: AT-41485
Manufacturer: HP
File Size: 40.70 KB
Datasheet: AT-41485-HP.pdf
Description: Up to 6 GHz Low Noise Silicon Bipolar Transistor
