AT-41435, AT4 - Up to 6 GHz Low Noise Silicon Bipolar Transistor

Agilent(Hewlett-Packard)

AT-41435 Description

Up to 6 GHz Low Noise Silicon␣ Bipolar Transistor Technical Data AT-41435 .
Hewlett-Packard’s AT-41435 is a general purpose NPN bipolar transistor that offers excellent high frequency performance.

AT-41435 Features

* Low Noise Figure: 1.7 dB Typical at 2.0␣ GHz 3.0 dB Typical at 4.0␣ GHz
* High Associated Gain: 14.0 dB Typical at 2.0␣ GHz 10.0 dB Typical at 4.0␣ GHz
* High Gain-Bandwidth Product: 8.0 GHz Typical fT
* Cost Effective Ceramic Microstrip Package finger interdigitat

AT-41435 Applications

* This device is designed for use in low noise, wideband amplifier, mixer and oscillator applications in the VHF, UHF, and microwave frequencies. An optimum noise match near 50 Ω at 1 GHz, makes this device easy to use as a low noise amplifier. The AT-41435 bipolar transistor is fabricated using Hewl

📥 Download Datasheet

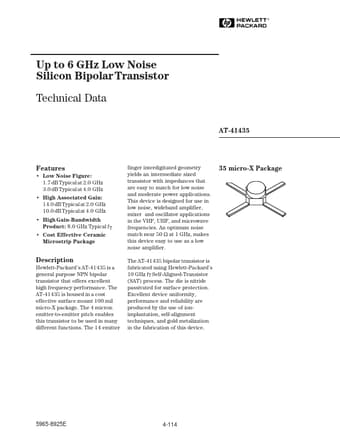

AT-41435 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT-41435, AT4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: AT-41435, AT4
Manufacturer: Agilent(Hewlett-Packard)
File Size: 56.45 KB
Datasheet: AT4-1435.pdf
Description: Up to 6 GHz Low Noise Silicon Bipolar Transistor
Note: This datasheet PDF includes multiple part numbers: AT-41435, AT4.
Please refer to the document for exact specifications by model.
