HT2576 3A Step-Down Voltage Regulator

HT2576 Description

HT2576 3A Step-Down Voltage Regulator GENERAL .
The HT2576 Series are step-down switching regulators with all required active functions.

HT2576 Features

* ‹ Guaranteed 3A output current. ‹ 3.3V, 5V, 12Vand adjustable versions, ‹ Wide input voltage range, up to 45V ‹ Internal oscillator of 52KHz fixed frequency. ‹ Wide adjust version output voltage range, from 1.23V to 37V ±4% max. at over line and load conditions. ‹ Low standby current, typ. 80µA, at

HT2576 Applications

* ‹ LCD Monitors. ‹ ADD-ON Cards Switching Regulators ‹ ADD-ON Cards Switching Regulators ‹ High Efficiency Step-Down Regulators ‹ Efficient Pre-regulator for Linear Regulators ‹ Positive to Negative converter (Buck-Boost) Block Diagram DC Input + Vin 1 4 Feed Back R2 +- R1 1K 1.23V Band-Gap Ref

📥 Download Datasheet

Preview of HT2576 PDF

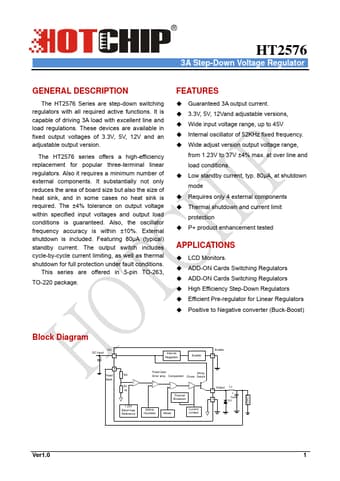

datasheet Preview Page 2 datasheet Preview Page 3
