RFM117, RFM110 single-chip OOK transmitters

RFM117 Description

.
The RFM110/RFM117 devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 240 to 960 MHz wireless app.

RFM117 Features

* Embedded EEPROM y Very Easy Development with RFPDK y All Features Programmable
* Frequency Range: y 240 to 480 MHz (RFM110) y 240 to 960 MHz (RFM117)
* OOK Modulation
* Symbol Rate: 0.5 to 30 ksps
* Output Power: -10 to +13 dBm
* Supply Voltage: 1.8

RFM117 Applications

* The RFM110A covers the frequency range from 240 to 480 MHz while the RFM117 covers the 240 to 960 MHz frequency range. They are part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. With very low current consumption, the device modulates

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RFM117, RFM110. Please refer to the document for exact specifications by model.

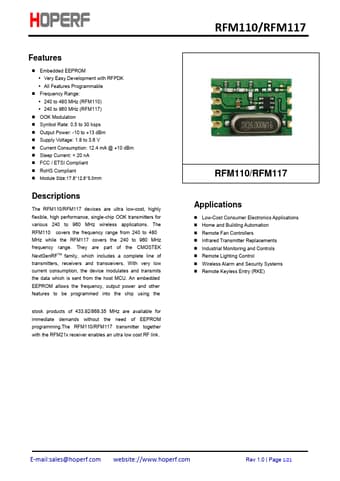

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFM117, RFM110
Manufacturer
HOPERF
File Size
365.72 KB
Datasheet
RFM110-HOPERF.pdf
Description
single-chip OOK transmitters
Note
This datasheet PDF includes multiple part numbers: RFM117, RFM110.
Please refer to the document for exact specifications by model.
