RFM110W single-chip OOK transmitters

RFM110W Description

.
The RFM110W/RFM117W devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 240 to 960 MHz wireless a.

RFM110W Features

* Embedded EEPROM y Very Easy Development with RFPDK y All Features Programmable
* Frequency Range: y 240 to 480 MHz (RFM110W) y 240 to 960 MHz (RFM117W)
* OOK Modulation
* Symbol Rate: 0.5 to 30 ksps
* Output Power: -10 to +13 dBm
* Supply Voltage: 1.

RFM110W Applications

* The RFM110WA covers the frequency range from 240 to 480 MHz while the RFM117W covers the 240 to 960 MHz frequency range. They are part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. With very low current consumption, the device modulat

📥 Download Datasheet

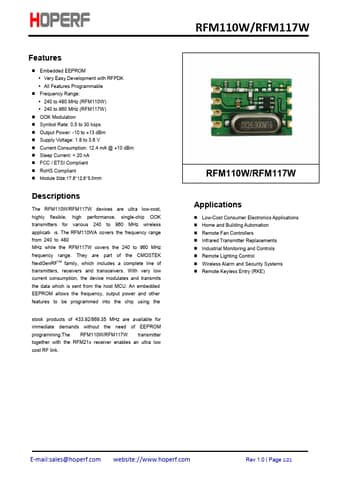

Preview of RFM110W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFM110W
Manufacturer
HOPERF
File Size
601.90 KB
Datasheet
RFM110W-HOPERF.pdf
Description
single-chip OOK transmitters
