HCS1206, HCS0805 METAL STRIP CURRENT SENSING RESISTORS

HITANO

Description

METAL STRIP CURRENT SENSING RESISTORS HCS SERIES * .

📥 Download Datasheet

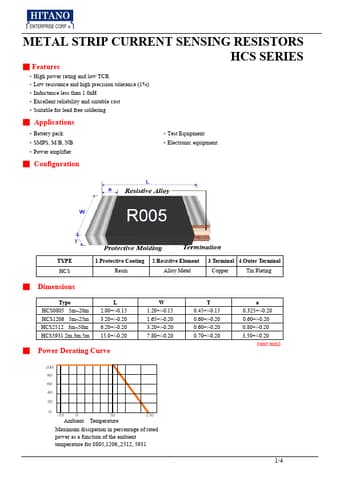

HCS1206 Datasheet Preview — This datasheet PDF includes multiple part numbers: HCS1206, HCS0805. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HCS1206, HCS0805
Manufacturer: HITANO
File Size: 336.85 KB
Datasheet: HCS0805-HITANO.pdf
Description: METAL STRIP CURRENT SENSING RESISTORS
Note: This datasheet PDF includes multiple part numbers: HCS1206, HCS0805.
Please refer to the document for exact specifications by model.

Features

* ‧High power rating and low TCR ‧Low resistance and high precision tolerance (1%) ‧Inductance less than 1.0nH ‧Excellent reliability and suitable cost ‧Suitable for lead free soldering

Applications

* ‧Battery pack ‧SMPS, M/B, NB ‧Power amplifier ‧Test Equipment ‧Electronic equipment
* Configuration TYPE HCS 1.Protective Coating 2.Resistive Element 3.Terminal 4.Outer Terminal Resin Alloy Metal Copper Tin Plating
* Dimensions Type HCS0805 5m~20m HCS1206 5m~25m HCS2512 3m~50m HCS
