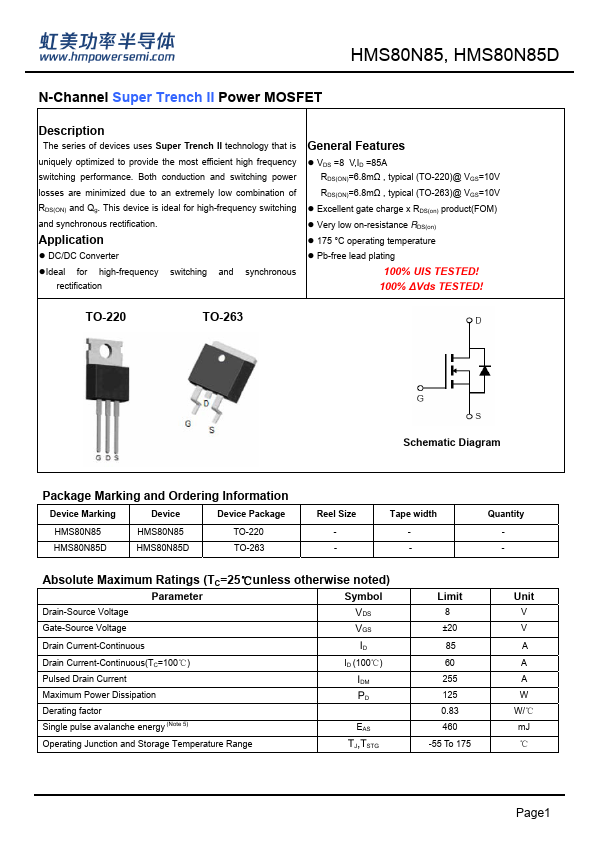

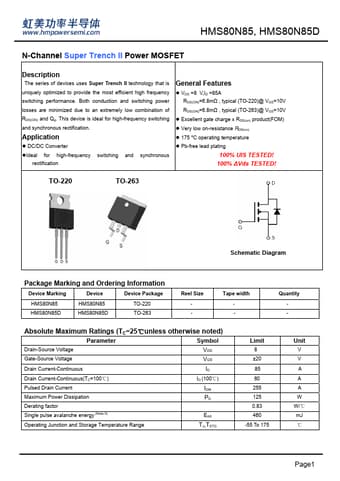

HMS80N85D, HMS80N85 N-Channel Super Trench II Power MOSFET

HMS80N85D Description

HMS80N85, HMS80N85D N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS80N85D Features

* VDS =8V,ID =85A RDS(ON)=6.8mΩ , typical (TO-220)@ VGS=10V RDS(ON)=6.8mΩ , typical (TO-263)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMS80N85D, HMS80N85. Please refer to the document for exact specifications by model.

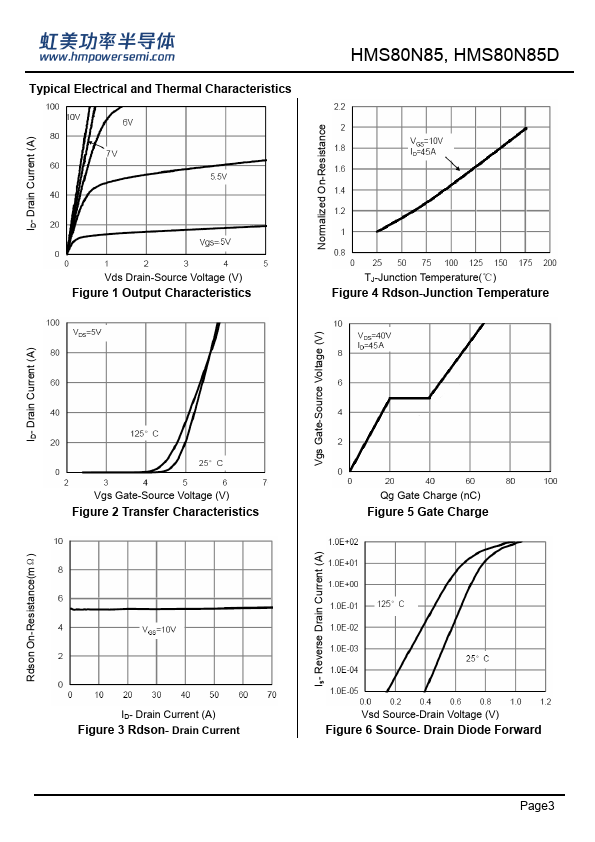

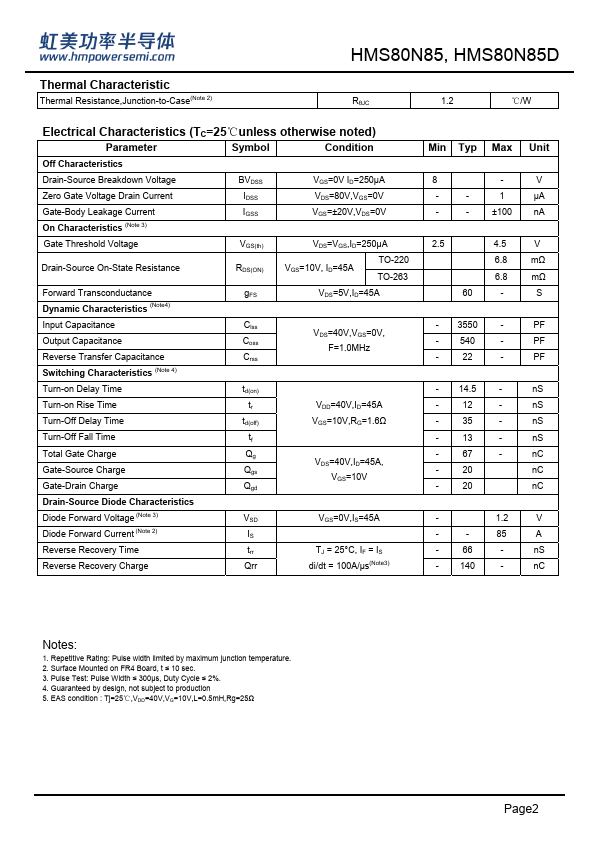

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS80N85D, HMS80N85
Manufacturer
H&M Semiconductor
File Size
577.07 KB
Datasheet
HMS80N85-HMSemiconductor.pdf
Description
N-Channel Super Trench II Power MOSFET
Note
This datasheet PDF includes multiple part numbers: HMS80N85D, HMS80N85.
Please refer to the document for exact specifications by model.
