HMS80N25 N-Channel Super Trench II Power MOSFET

HMS80N25 Description

HMS80N25, HMS80N25D N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS80N25 Features

* VDS =250V,ID =A RDS(ON)=18mΩ , typical (TO-220)@ VGS=10V RDS(ON)=18mΩ , typical (TO-263)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220

📥 Download Datasheet

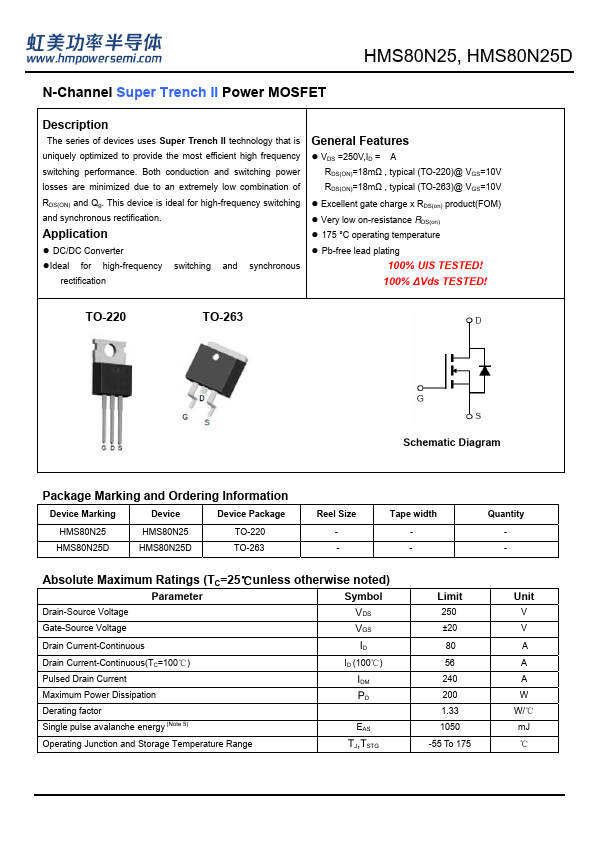

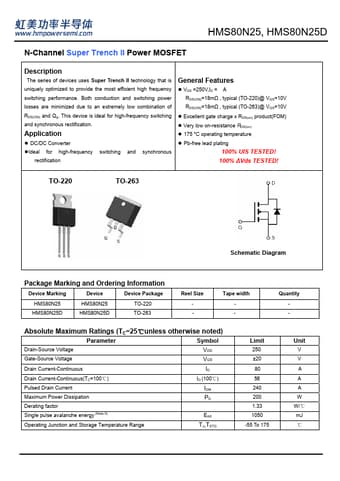

Preview of HMS80N25 PDF

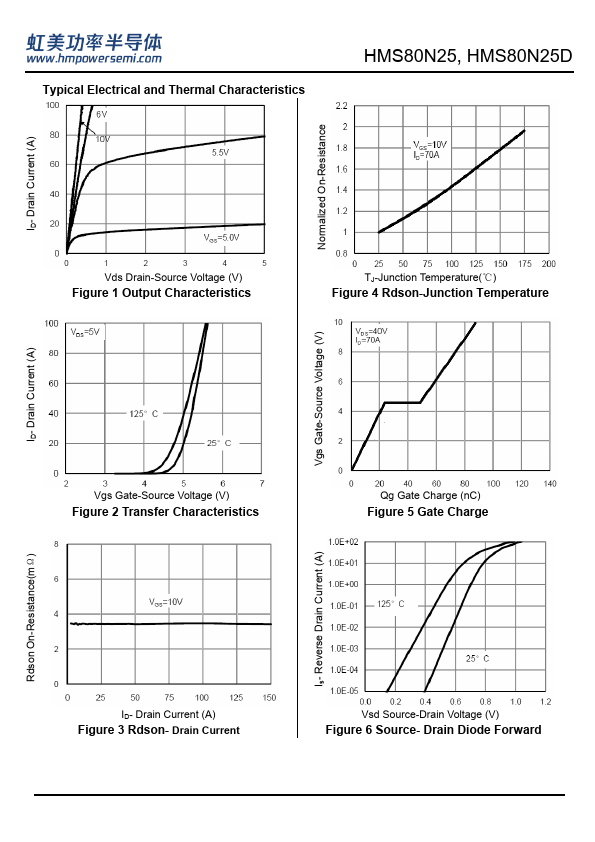

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS80N25
Manufacturer
H&M Semiconductor
File Size
695.84 KB
Datasheet
HMS80N25-HMSemiconductor.pdf
Description
N-Channel Super Trench II Power MOSFET
