HMS5N80K, HMS5N80I - N-Channel Super Junction Power MOSFET

H&M Semiconductor

📥 Download Datasheet

HMS5N80K Datasheet Preview — This datasheet PDF includes multiple part numbers: HMS5N80K, HMS5N80I. Please refer to the document for exact specifications by model.

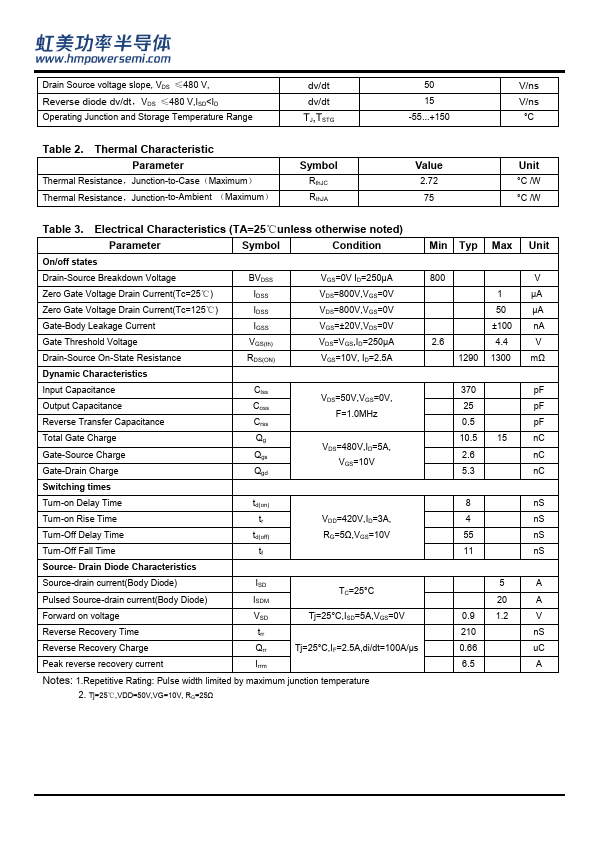

datasheet Preview Page 2

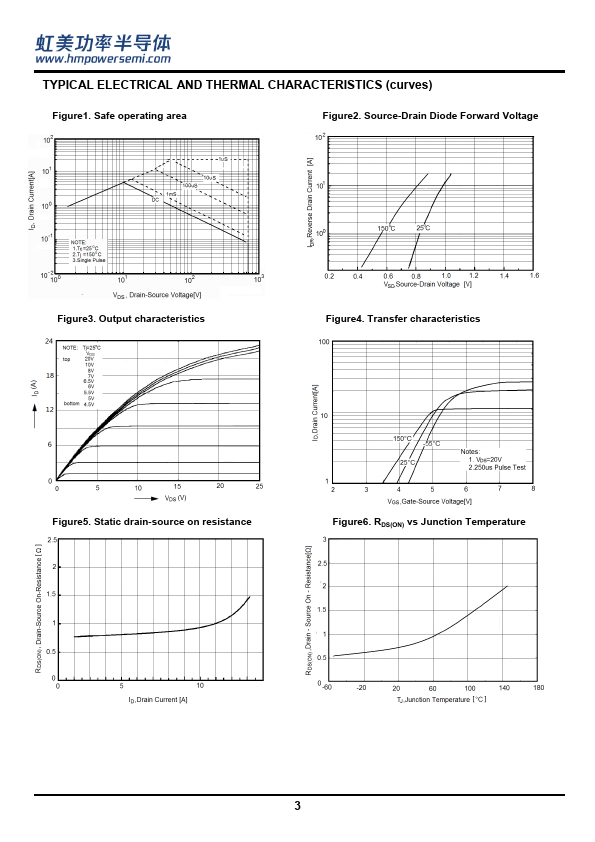

datasheet Preview Page 3

Datasheet Details

Part number	HMS5N80K, HMS5N80I
Manufacturer	H&M Semiconductor
File Size	594.78 KB
Description	N-Channel Super Junction Power MOSFET
Datasheet	HMS5N80I-HMSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HMS5N80K, HMS5N80I. Please refer to the document for exact specifications by model.

HMS5N80K Product details

Description

The series of devices use advanced trench gate super junction technology and design to provide excellent RDS(ON) with low gate charge.

Features

New technology for high voltage device.
Low on-resistance and low conduction losses.
Small package.
Ultra Low Gate Charge cause lower driving requirements.
100% Avalanche Tested.
ROHS compliant VDS 800 V RDS(ON)TYP 1290 mΩ ID 5 A.
