HMS5N80F - 800V N-Channel Super Junction MOSFET

H&M Semiconductor

📥 Download Datasheet

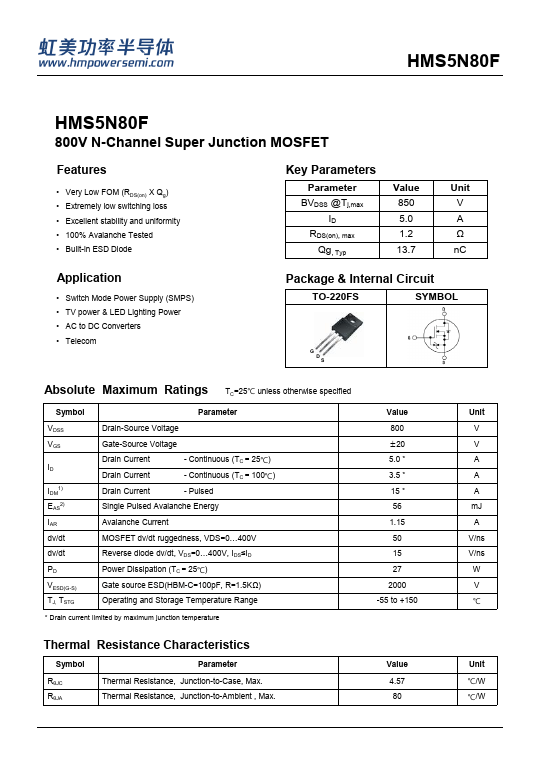

HMS5N80F Datasheet Preview — Preview of HMS5N80F PDF

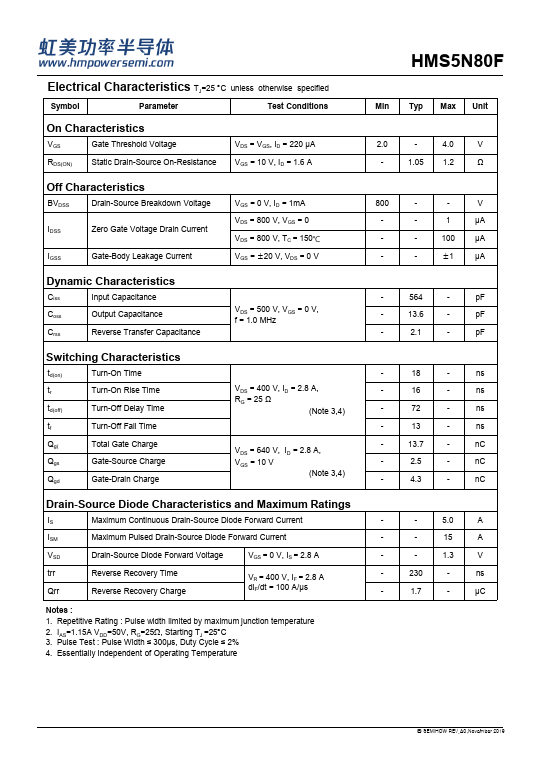

datasheet Preview Page 2

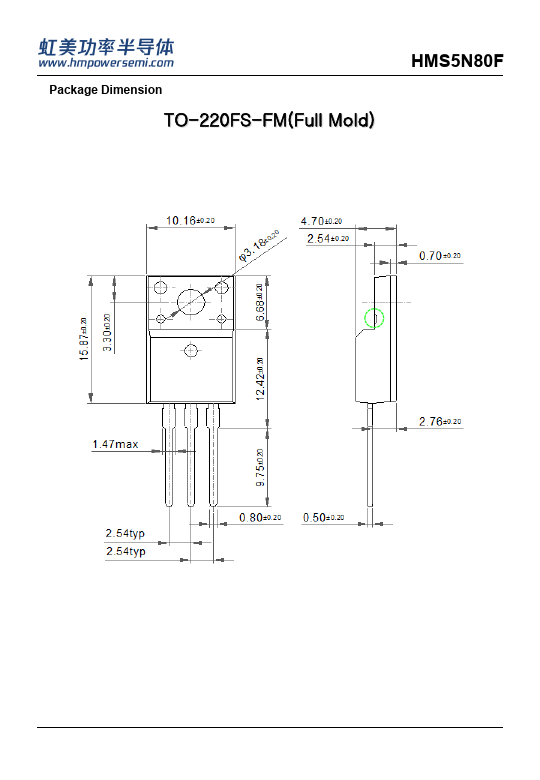

datasheet Preview Page 3

Datasheet Details

Part number	HMS5N80F
Manufacturer	H&M Semiconductor
File Size	323.33 KB
Description	800V N-Channel Super Junction MOSFET
Datasheet	HMS5N80F-HMSemiconductor.pdf

HMS5N80F Product details

Features

Very Low FOM (RDS(on) X Qg).
Extremely low switching loss.
Excellent stability and uniformity.
100% Avalanche Tested.
Built-in ESD Diode Key Parameters Parameter BVDSS @Tj,max ID RDS(on), max Qg, Typ Value 850 5.0 1.2 13.7 Unit V A Ω nC.
