HMS15N70D, HMS15N70K - 700V N-Channel MOSFET

H&M Semiconductor

📥 Download Datasheet

HMS15N70D Datasheet Preview — This datasheet PDF includes multiple part numbers: HMS15N70D, HMS15N70K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	HMS15N70D, HMS15N70K
Manufacturer	H&M Semiconductor
File Size	1.08 MB
Description	700V N-Channel MOSFET
Datasheet	HMS15N70K-HMSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HMS15N70D, HMS15N70K. Please refer to the document for exact specifications by model.

HMS15N70D Product details

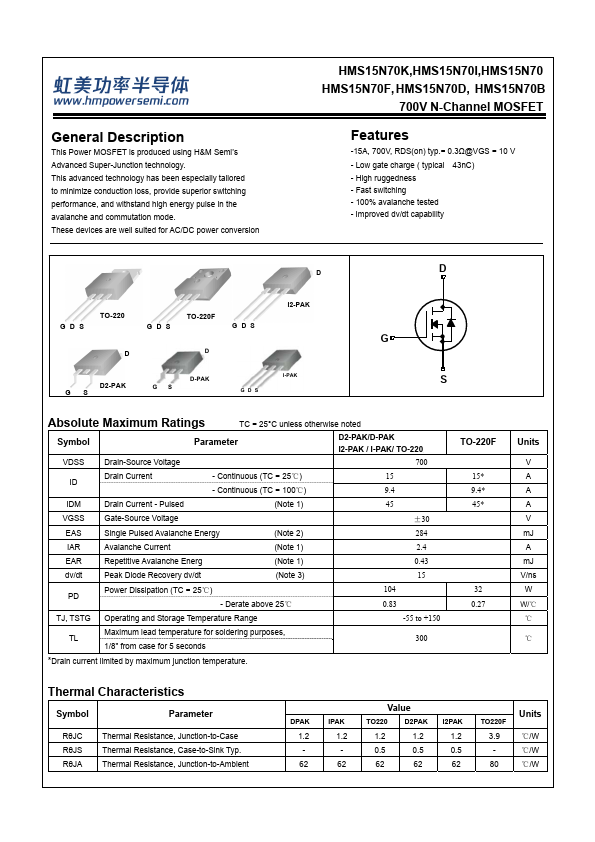

Description

This Power MOSFET is producFeeadtuurseisng H&M Semi’s Advanced Super-Junction This advanced technology theacsh--nb7Lo.oe6wlAeo,gng5a0ytee0. Vsch,paRerDgcSe(oi(na)ttlyylppy.i=cta0al .5i2lΩo5@nrCeV)dGS = 10 V to minimize conduction loss, pr-oHvigihdreugsguedpneesrsior switching performance, and withstand hig-- F1h0a0set%nswaevitracghlaiynngcpheutlessetedin the avalanche and commutation m-oImdpero.ved dv/dt capability These devices are well suited for AC/DC power conversion HMS15N70K,HM

Features

-15A, 700V, RDS(on) typ. = 0.3Ω@VGS = 10 V - Low gate charge ( typical - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability 43nC) D D GDS TO-220 GDS TO-220F GDS D D D2-PAK GS GS D-PAK GDS I2-PAK I-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter D2-PAK/D-PAK I2-PAK / I-PAK/ TO-220 VDSS Drain-Source Voltage 700 ID Drain Current - Continuous (TC = 25℃) 15 - Continuous (TC = 100℃) 9.4 IDM Drain Curr.
