HMS10N15D - N-Channel Super Trench Power MOSFET

H&M Semiconductor

📥 Download Datasheet

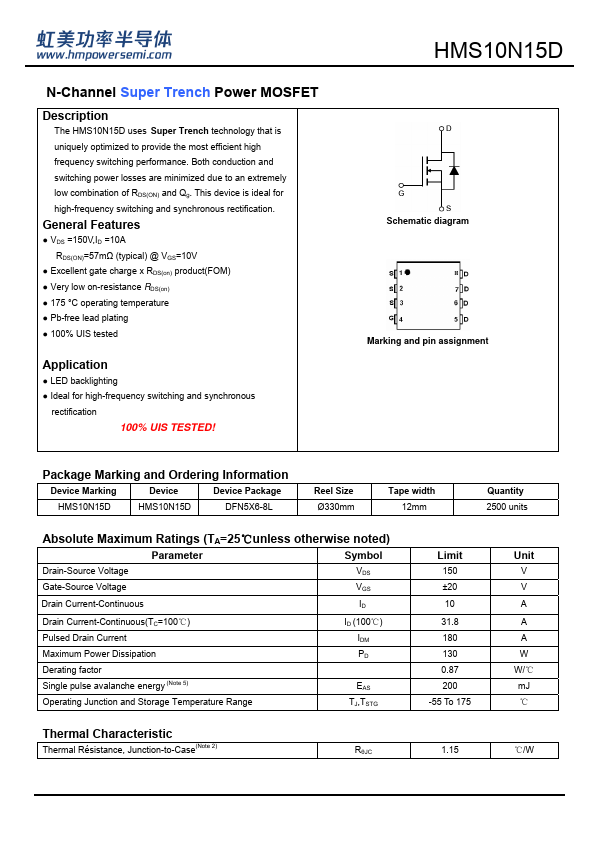

HMS10N15D Datasheet Preview — Preview of HMS10N15D PDF

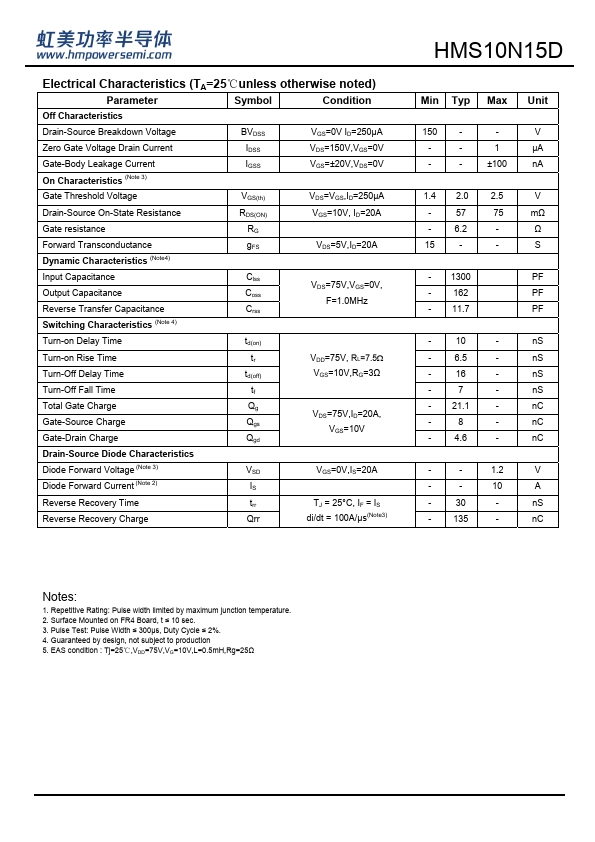

datasheet Preview Page 2

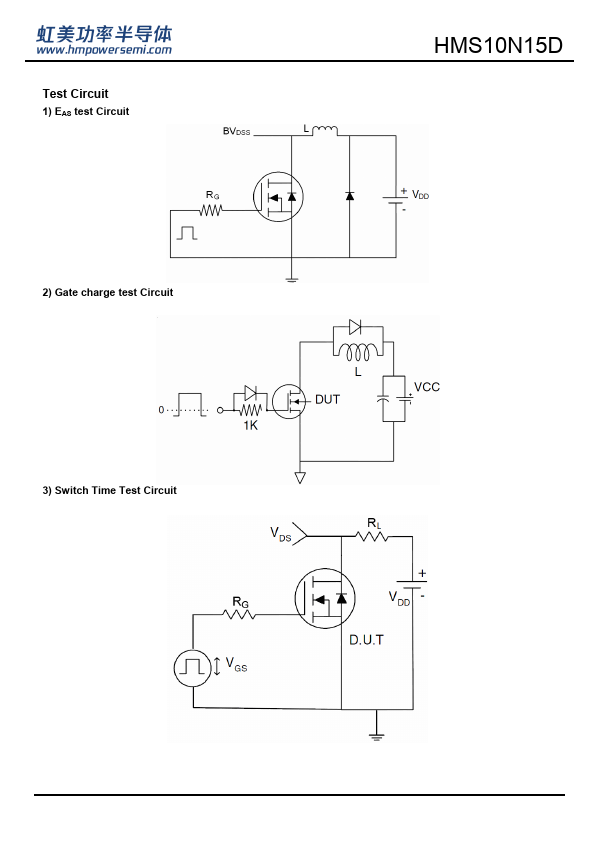

datasheet Preview Page 3

Datasheet Details

Part number	HMS10N15D
Manufacturer	H&M Semiconductor
File Size	607.95 KB
Description	N-Channel Super Trench Power MOSFET
Datasheet	HMS10N15D-HMSemiconductor.pdf

HMS10N15D Product details

Description

The HMS10N15D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

Features

VDS =150V,ID =10A RDS(ON)=57mΩ (typical) @ VGS=10V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating.
100% UIS tested.
