HM6N70 Datasheet - H&M Semiconductor

HM6N70 N-channel Enhanced VDMOSFET

HM6N70/F,the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and h.

HM6N70 Features

* l Fast Switching l Low ON Resistance(Rdson≤2.2Ω) l Low Gate Charge (Typical Data:18.6nC) l Low Reverse transfer capacitances(Typical:6.6pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Par

HM6N70-HMSemiconductor.pdf

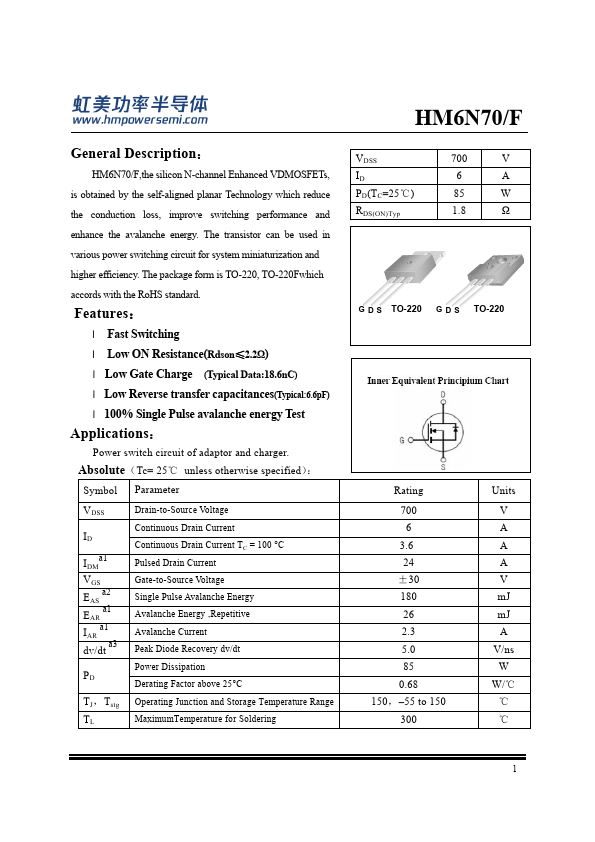

Preview of HM6N70 PDF

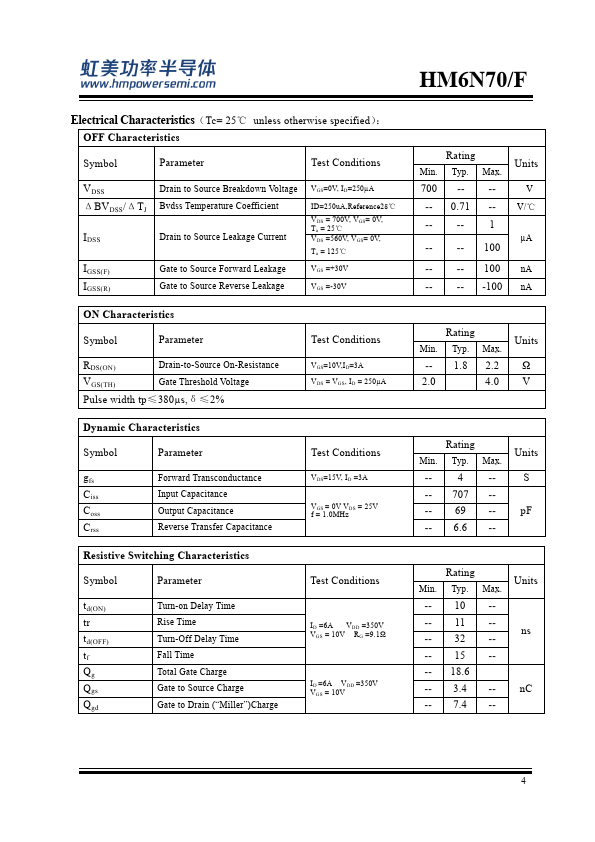

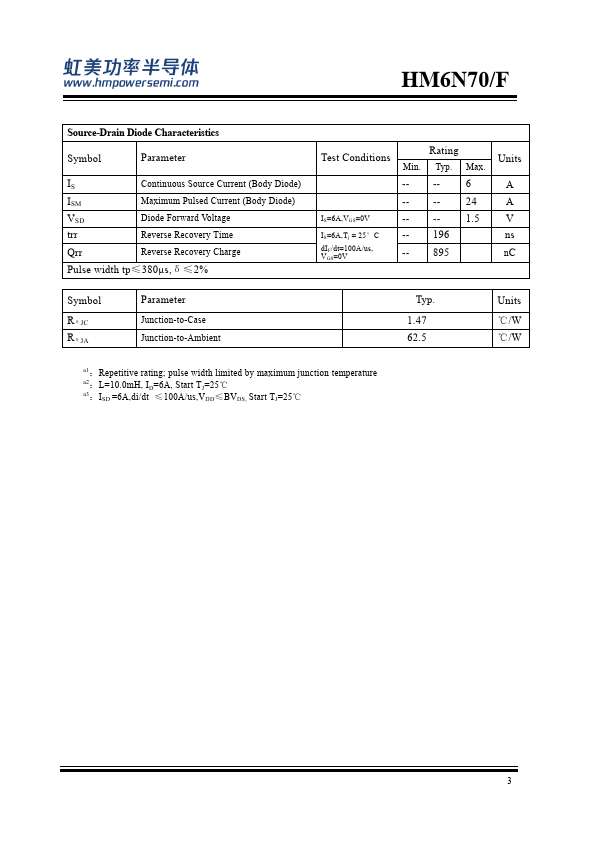

HM6N70 Datasheet Preview Page 2 HM6N70 Datasheet Preview Page 3

Datasheet Details

Part number:

HM6N70

Manufacturer:

H&M Semiconductor

File Size:

0.98 MB

Description:

N-channel enhanced vdmosfet.
