HM60N05K Datasheet - H&M Semiconductor

HM60N05K N-Channel Enhancement Mode Power MOSFET

HM60N05K Features

* VDS = 50V,ID =60A RDS(ON) < 7.6mΩ @ VGS=10V (Typ:5.7mΩ) RDS(ON) < 8.0mΩ @ VGS=4.5V (Typ:6.3mΩ)

* High density cell design for ultra low Rdson

* Fully characterized avalanche voltage and current

* Low gate to drain charge to reduce switching losses Schematic diagram HM60N05K Appli

HM60N05K-HMSemiconductor.pdf

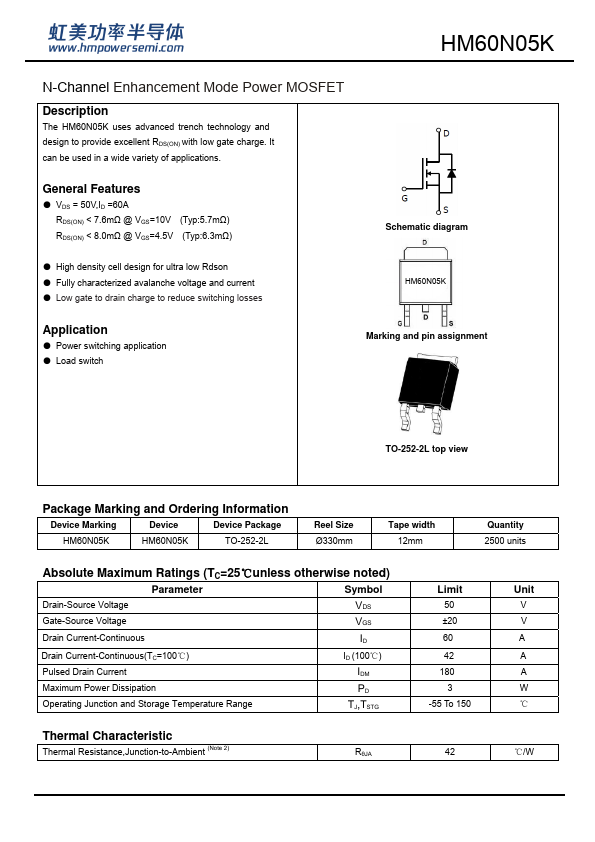

Preview of HM60N05K PDF

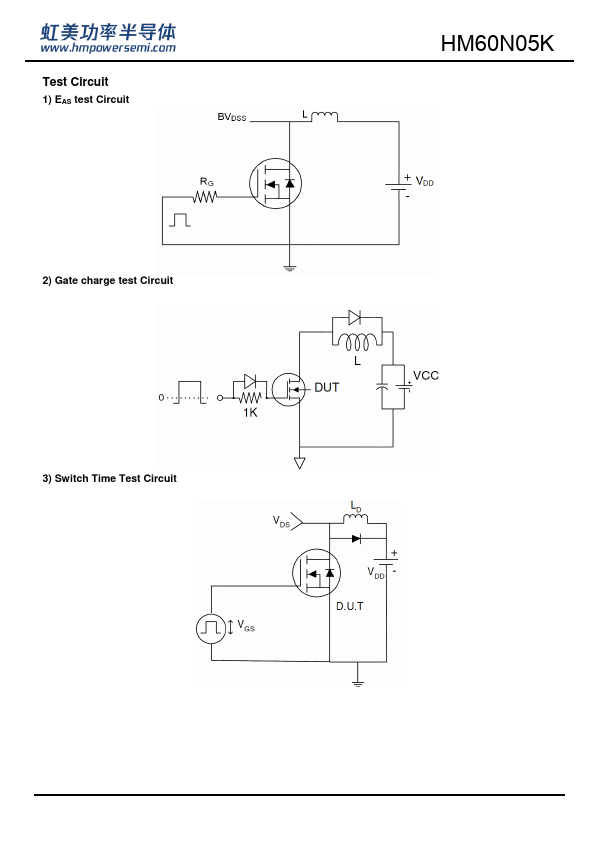

HM60N05K Datasheet Preview Page 2 HM60N05K Datasheet Preview Page 3

Datasheet Details

Part number:

HM60N05K

Manufacturer:

H&M Semiconductor

File Size:

691.89 KB

Description:

N-channel enhancement mode power mosfet.
