HM1482D 30V 2A Synchronous Step-Down Regulator

HM1482D Description

HM1482D 30V 2A Synchronous Step-Down Regulator .
Notebook Systems and I/O Power. Distributed Power Systems The HM1482D is a high frequency, synchronous, rectified, step-down, swi.

HM1482D Features

* Wide 4V to 30V Operating Input Range
* 2A Continuous Output Current
* 500kHz Switching Frequency
* Short Protection with Hiccup-Mode
* Built-in Over Current Limit
* Built-in Over Voltage Protection
* Internal Power-Save Mode (PFM/PWM)

HM1482D Applications

* Car Charge/Adapter

📥 Download Datasheet

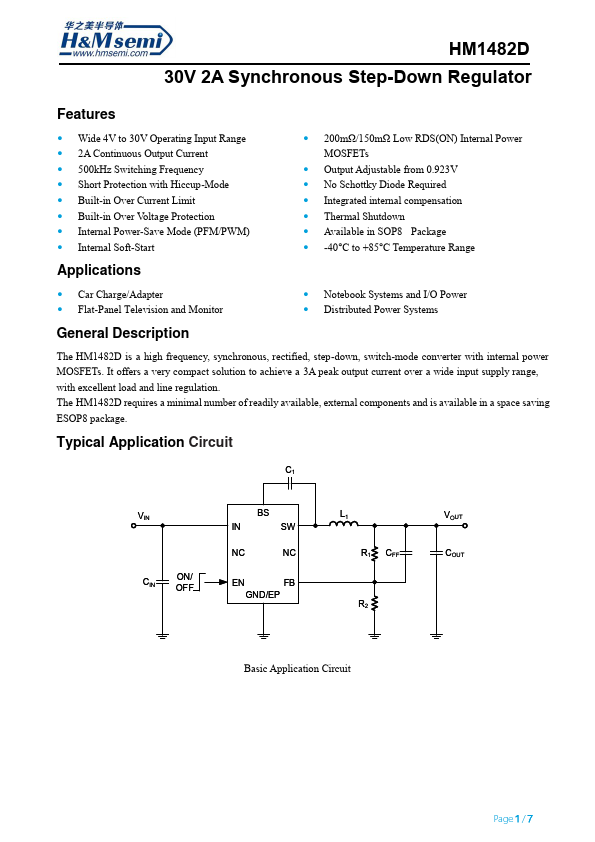

Preview of HM1482D PDF

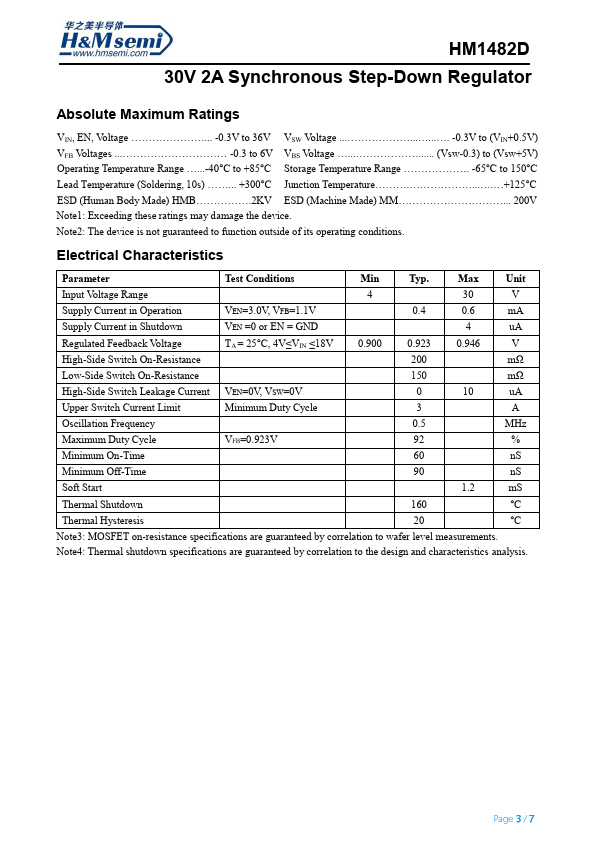

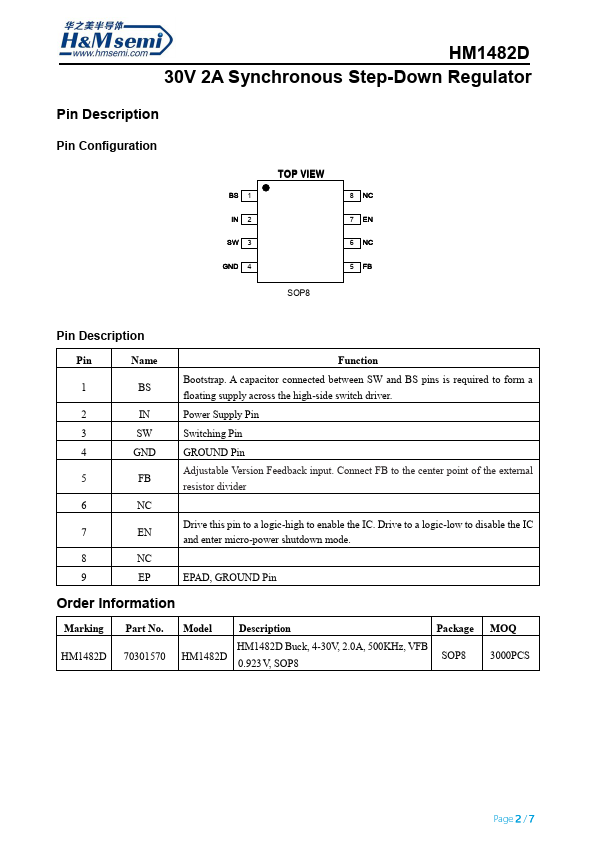

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM1482D
Manufacturer
H&M Semiconductor
File Size
753.64 KB
Datasheet
HM1482D-HMSemiconductor.pdf
Description
30V 2A Synchronous Step-Down Regulator
