HM120N03KA - N-Channel Enhancement Mode Power MOSFET

HM120N03KA Description

HM120N03KA N-Channel Enhancement Mode Power MOSFET .
The HM120N03KA uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM120N03KA Features

* VDS =30V,ID =120A RDS(ON) =3.2mΩ (Typ) @ VGS=10V RDS(ON) =4.6mΩ (Typ) @ VGS=4.5V
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation

📥 Download Datasheet

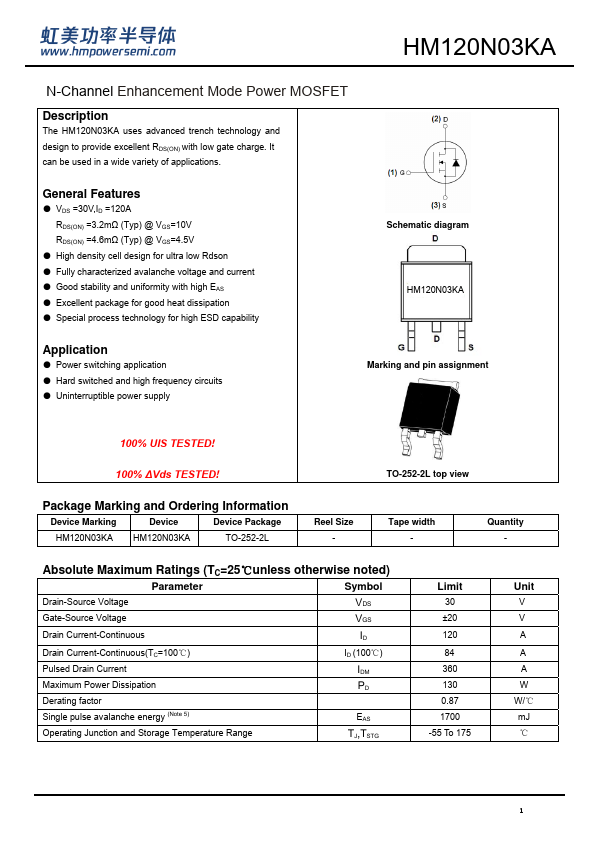

Preview of HM120N03KA PDF

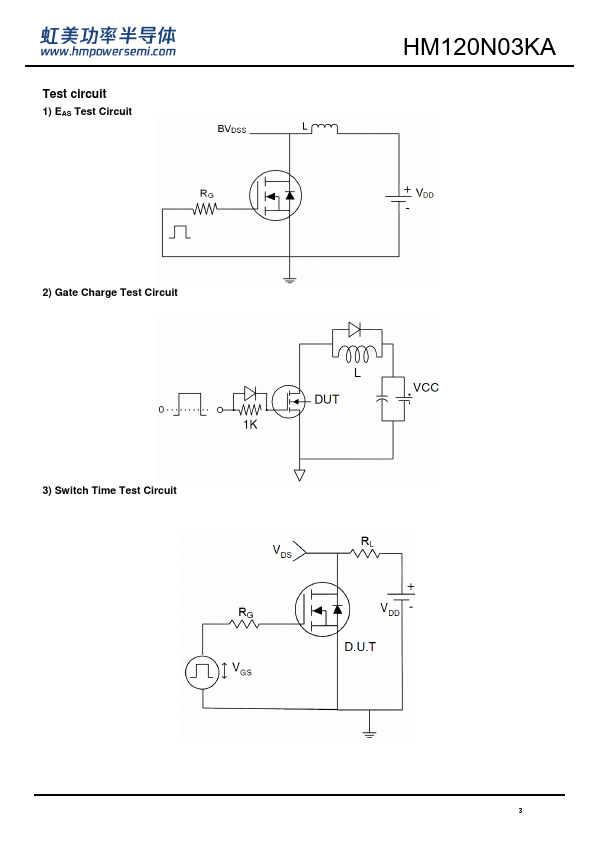

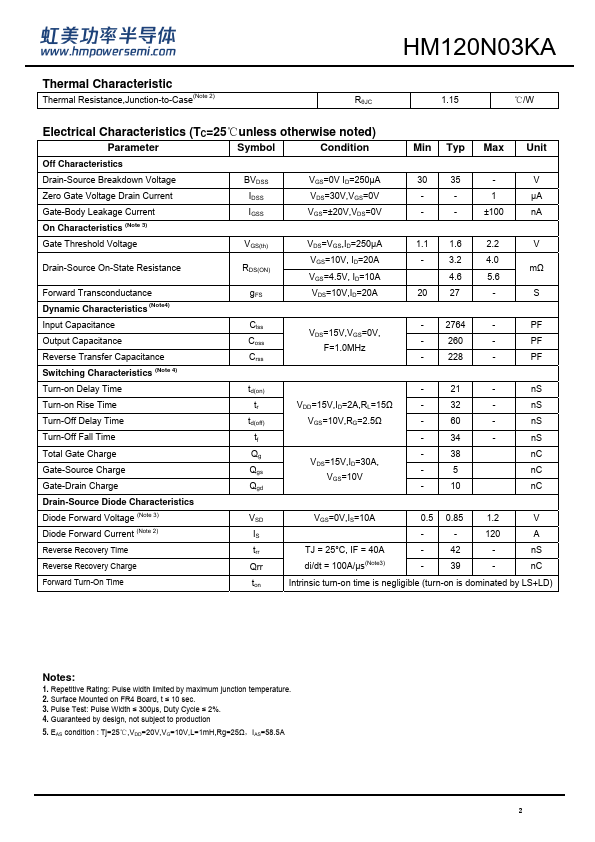

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM120N03KA
Manufacturer
H&M Semiconductor
File Size
724.06 KB
Datasheet
HM120N03KA-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
