HM1160 Single Cell Li-Ion battery indicator

H&M Semiconductor

HM1160 Description

HM1160 Single Cell Li-Ion battery indicator chip * General .
The HM1160 is a single lithium battery charge indicator chip, using CMOS process to achieve, small size and ease of installation of portable products.

HM1160 Features

* Ultra-low current consumption:

HM1160 Applications

* Mobile Power
* LED flashlight
* Marking Rule
* portable electronic devices
* Package
* SOT23-6L D1 D2 D3 6 5 4 1 2 3 VDD GND D4
* Pin Function
* VDD(Pin 1): electric power source
* GND(Pin 2): ground terminal
* D1-D4(Pin 3-6):LED1-LED4 output in

📥 Download Datasheet

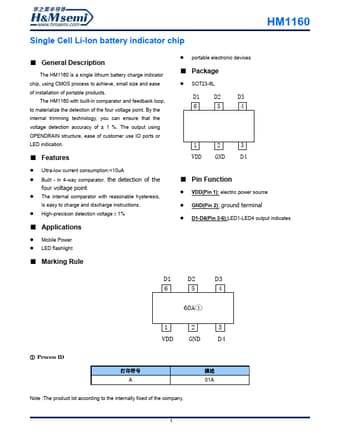

HM1160 Datasheet Preview — Preview of HM1160 PDF

Datasheet Details

Part number: HM1160
Manufacturer: H&M Semiconductor
File Size: 194.63 KB
Datasheet: HM1160-HMSemiconductor.pdf
Description: Single Cell Li-Ion battery indicator
