HM10DP06D - P-Channel Enhancement Mode Field Effect Transistor

📥 Download Datasheet

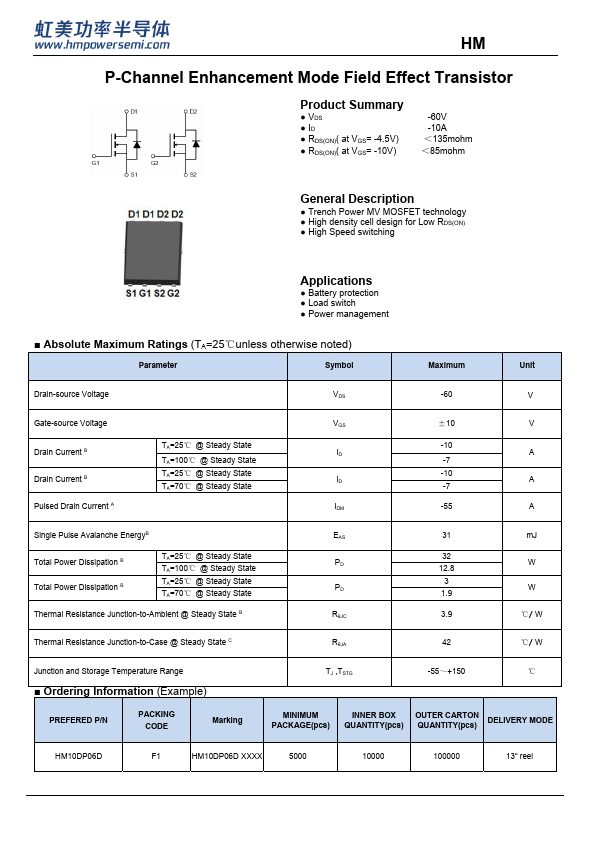

Preview of HM10DP06D PDF

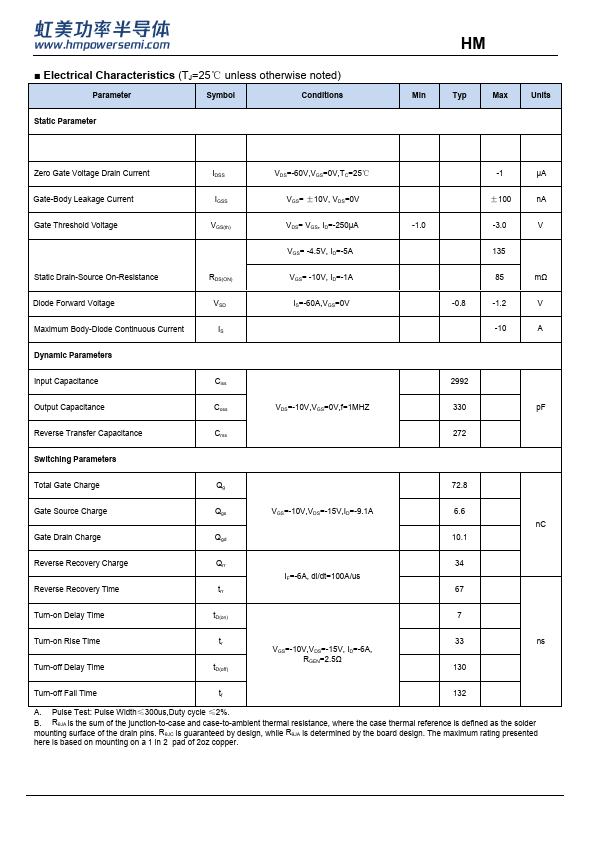

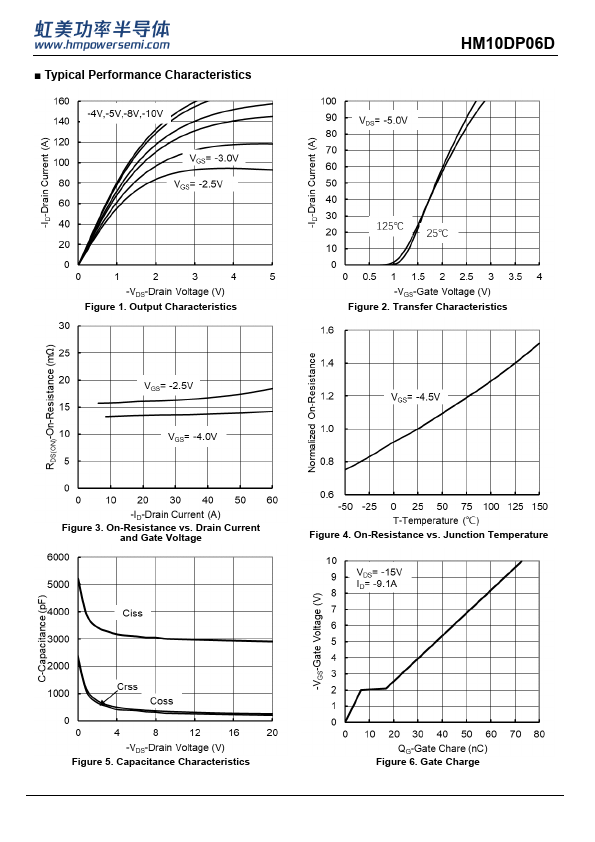

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HM10DP06D
Manufacturer H&M Semiconductor
File Size 857.79 KB
Description P-Channel Enhancement Mode Field Effect Transistor
Datasheet download datasheet HM10DP06D-HMSemiconductor.pdf

HM10DP06D Product details

Description

Trench Power MV MOSFET technology High density cell design for Low RDS(ON) High Speed switching Applications Battery protection Load switch Power management Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Maximum Unit Drain-source Voltage VDS -60 V Gate-source Voltage VGS Drain Current B TA=25℃ @ Steady State TA=100℃ @ Steady State ID Drain Current B TA=25℃ @ Steady State TA=70℃ @ Steady State ID Pulsed Drain C
