G517, G517-GlobalMixed Power Distribution Switch

Global Mixed-mode Technology

Description

Global Mixed-mode Technology G517 Power Distribution Switch .
The G517 is an integrated power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.

📥 Download Datasheet

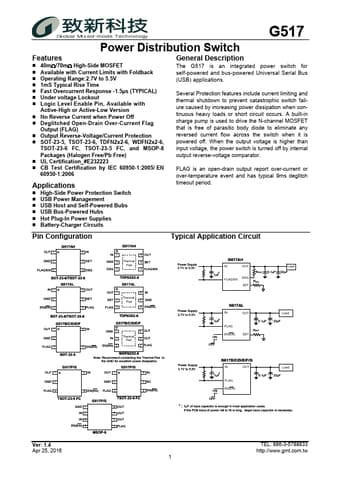

G517 Datasheet Preview — This datasheet PDF includes multiple part numbers: G517, G517-GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: G517, G517-GlobalMixed
Manufacturer: Global Mixed-mode Technology
File Size: 4.55 MB
Datasheet: G517-GlobalMixed-modeTechnology.pdf
Description: Power Distribution Switch
Note: This datasheet PDF includes multiple part numbers: G517, G517-GlobalMixed.
Please refer to the document for exact specifications by model.

Features

* 40mΩ/70mΩ High-Side MOSFET
* Available with Current Limits with Foldback
* Operating Range:2.7V to 5.5V
* 1mS Typical Rise Time
* Fast Overcurrent Response -1.5µs (TYPICAL)
* Under voltage Lockout
* Logic Level Enable Pin, Available with Acti

Applications

* High-Side Power Protection Switch
* USB Power Management
* USB Host and Self-Powered Bubs
* USB Bus-Powered Hubs
* Hot Plug-In Power Supplies
