G5177 - Digital Green-Mode PWM Controller

General Description

The G5177 is a high performance AC/DC power supply controller which uses digital control technology to build peak current mode PWM flyback power supplies.

Key Features

  • while minimizing the external component count, simplifying EMI design and lowering the total bill of material cost. The device together with an external active device (depletion mode NFET or NPN BJT) provides a fast start-up without compromising no-load power loss. Global Semiconductor’s innovative proprietary technology ensures that power supplies built with the G5177 can achieve both highest average efficiency and less than 20mW no-load power consumption, and have fast dynamic load response in.

📥 Download Datasheet

Datasheet Details

Part number G5177
Manufacturer Global Semiconductor
File Size 154.83 KB
Description Digital Green-Mode PWM Controller
Datasheet download datasheet G5177 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G5177B Rectifier Step Up Converter Global Mixed-mode Technology
G5177C Rectifier Step Up Converter Global Mixed-mode Technology
G517 Transformer TAMURA
G517 Power Distribution Switch Global Mixed-mode Technology
G5172 Synchronous Step Down Global Mixed-mode Technology

Other Datasheets by Global Semiconductor

Part Number Description
G5175 DIGITAL PWM
G5176 DIGITAL PWM
G5178 DIGITAL PWM
G5137P DIGITAL PWM
G5138P DIGITAL PWM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

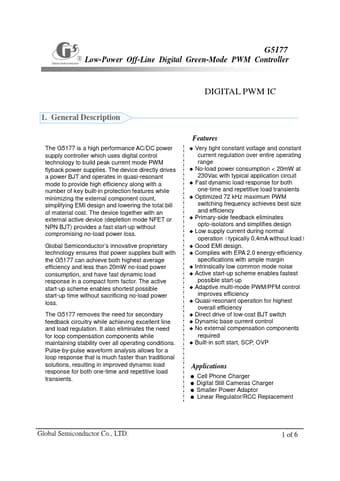

G5177 Low-Power Off-Line Digital Green-Mode PWM Controller DIGITAL PWM IC 1. General Description The G5177 is a high performance AC/DC power supply controller which uses digital control technology to build peak current mode PWM flyback power supplies. The device directly drives a power BJT and operates in quasi-resonant mode to provide high efficiency along with a number of key built-in protection features while minimizing the external component count, simplifying EMI design and lowering the total bill of material cost. The device together with an external active device (depletion mode NFET or NPN BJT) provides a fast start-up without compromising no-load power loss.
