G2018 - 5+1CH serial input motor driver

Description

G2018 is a 5+1-channel H-Bridge motor drivers IC for the digital cam

Features

  • Build-in one micro-steps drive mode is possible from 2-2 phase stepper drive to maximum 1024 resolution micro-steps.
  • Built in 2 full-swing/constant voltage drivers switched by serial control with brake function.
  • Built in 1 constant current drivers for shutter or IRIS.
  • Built in CH3 DCM FLL function.
  • Low on-resistance (1.2Ω, sum of on-resistance of upside and bottom side).
  • Output current：Iout.

📥 Download Datasheet

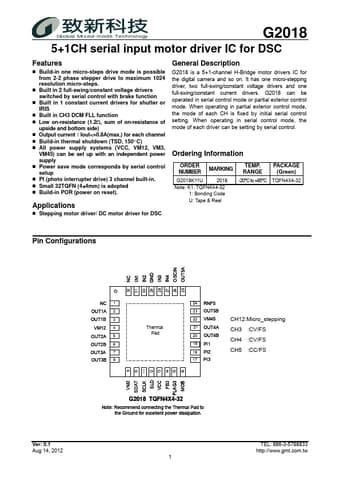

Datasheet preview – G2018

Datasheet Details

Part number G2018
Manufacturer Global Mixed-mode Technology
File Size 98.82 KB
Description 5+1CH serial input motor driver
Datasheet download datasheet G2018 Datasheet
Additional preview pages of the G2018 datasheet.

📁 Similar Datasheet

  • G2012 - N-Channel Enhancement Mode Power MOSFET (GOFORD)
  • G20-40i - Rectifier (AEG)
  • G200 - Axial Vitreous Leaded Wirewound Resistors (Vishay)
  • G2000HF250 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G2000HF450 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G2002A - N-Channel Enhancement Mode Power MOSFET (GOFORD)
  • G2003A - N-Channel Enhancement Mode Power MOSFET (GOFORD)
  • G200HJJ-EN1 - TFT LCD (INNOLUX)
  • G200HJJ-L01 - TFT LCD (INNOLUX)
  • G202 - Axial Vitreous Leaded Wirewound Resistors (Vishay)
Other Datasheets by Global Mixed-mode Technology
  • G2010 - 1-Channel DC Motor Driver
  • G2011 - 2-Channel DC Motor Driver
  • G2012 - 4+2CH serial input motor driver
  • G2001 - 6+1CH serial input motor driver IC
  • G2002 - 5+1CH serial input motor driver
  • G2002B - 5+1CH serial input motor driver
  • G2003 - 10-bit I2C DAC
  • G2004 - Constant current type 1-CH H-bridge driver IC

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology G2018 5+1CH serial input motor driver IC for DSC Features „ Build-in one micro-steps drive mode is possible from 2-2 phase stepper drive to maximum 1024 resolution micro-steps. „ Built in 2 full-swing/constant voltage drivers switched by serial control with brake function „ Built in 1 constant current drivers for shutter or IRIS „ Built in CH3 DCM FLL function „ Low on-resistance (1.2Ω, sum of on-resistance of upside and bottom side) „ Output current：Iout<=0.8A(max.) for each channel „ Build-in thermal shutdown (TSD, 150°C) „ All power supply systems (VCC, VM12, VM3, VM45) can be set up with an independent power supply „ Power save mode corresponds by serial control setup „ PI (photo interrupter drive) 3 channel built-in.
