G2007 - 6CH serial input motor driver

G2007 Description

Global Mixed-mode Technology Inc.G2007 6CH serial input motor driver IC for DSC .
G2007 is a 6-channel H-Bridge motor drivers IC for the digital camera and so on.

G2007 Features

* Built-in 5 full-swing/constant voltage drivers switched by serial control with brake function
* Built-in 2 constant current drivers for shutter or IRIS
* Low on-resistance (1.2Ω, sum of on-resistance of up side and bottom side)
* Output current：Iout

📥 Download Datasheet

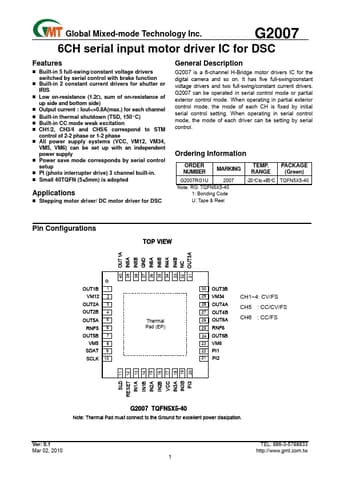

Preview of G2007 PDF

Datasheet Details

Part number
G2007
Manufacturer
Global Mixed-mode Technology
File Size
84.84 KB
Datasheet
G2007-GlobalMixedmodeTechnology.pdf
Description
6CH serial input motor driver
