G2005 - 5+1CH serial input motor driver IC

Description

G2005 is a 5+1-channel H-Bridge motor drivers IC for the digital

Features

Built-in 4 full-swing/constant voltage drivers switched by serial control with brake function.
Built-in 2 constant current drivers for shutter or IRIS.
Low on-resistance (1.2Ω, sum of on-resistance of up side and bottom side).
Output current：IOUT.

Global Mixed-mode Technology

📥 Download Datasheet

Datasheet Details

Part number	G2005
Manufacturer	Global Mixed-mode Technology
File Size	62.21 KB
Description	5+1CH serial input motor driver IC
Datasheet	G2005 Datasheet

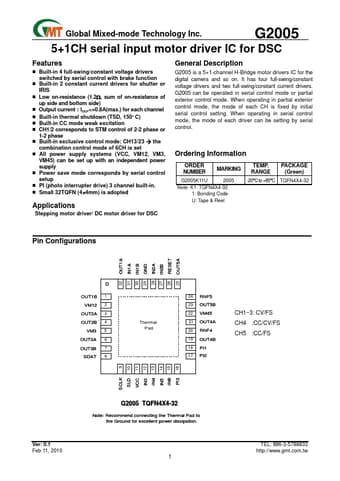

Additional preview pages of the G2005 datasheet.
