GB01SHT12-CAL - High Temperature Silicon Carbide Power Schottky Diode

GB01SHT12-CAL Description

  High Temperature Silicon Carbide Power Schottky Diode .

GB01SHT12-CAL Features

* 1200 V Schottky rectifier
* 210°C maximum operating temperature
* Zero reverse recovery charge
* Superior surge current capability
* Positive temperature coefficient of VF
* Temperature independent switching behavior
* Lowest figure of merit QC/IF
* Available screen

GB01SHT12-CAL Applications

* Down Hole Oil Drilling
* Geothermal Instrumentation
* Solenoid Actuators
* General Purpose High-Temperature Switching
* Amplifiers
* Solar Inverters
* Switched-Mode Power Supply (SMPS)
* Power Factor Correction (PFC) Maximum Ratings at Tj = 210 °C, unless otherwise

📥 Download Datasheet

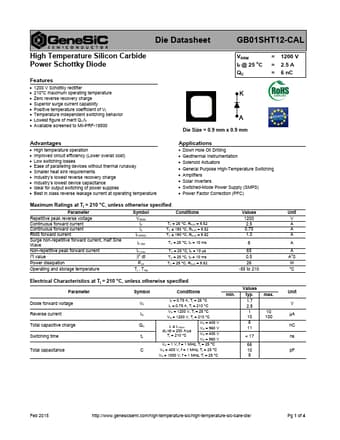

Preview of GB01SHT12-CAL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GB01SHT12-CAL
Manufacturer
GeneSiC
File Size
281.43 KB
Datasheet
GB01SHT12-CAL-GeneSiC.pdf
Description
High Temperature Silicon Carbide Power Schottky Diode
