GM6156 - 150mA LOW-NOISE LDO REGULATOR

Name: GM6156
SKU: GM6156-597506

Gamma Microelectronics

📥 Download Datasheet

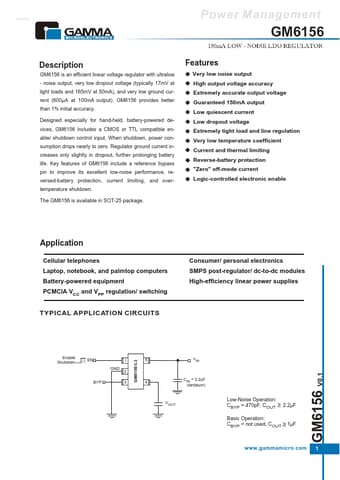

GM6156 Datasheet Preview — Preview of GM6156 PDF

Datasheet Details

Part number	GM6156
Manufacturer	Gamma Microelectronics
File Size	261.23 KB
Description	150mA LOW-NOISE LDO REGULATOR
Datasheet	GM6156_GammaMicroelectronics.pdf

GM6156 Product details

Description

GM6156 is an efficient linear voltage regulator with ultralow - noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 50mA), and very low ground current (600µA at 100mA output).

Features

of GM6156 include a reference bypass pin to improve its excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown. The GM6156 is available in SOT-25 package. Features Very low noise output High output voltage accuracy Extremely accurate output voltage Guaranteed 150mA output Low quiescent current Low dropout voltage Extremely tight load and line regulation Very low temperature coefficient Current and thermal limiting Reverse-battery protection.
